Technical Documents
Specifications
Brand
RS ProProduct Type

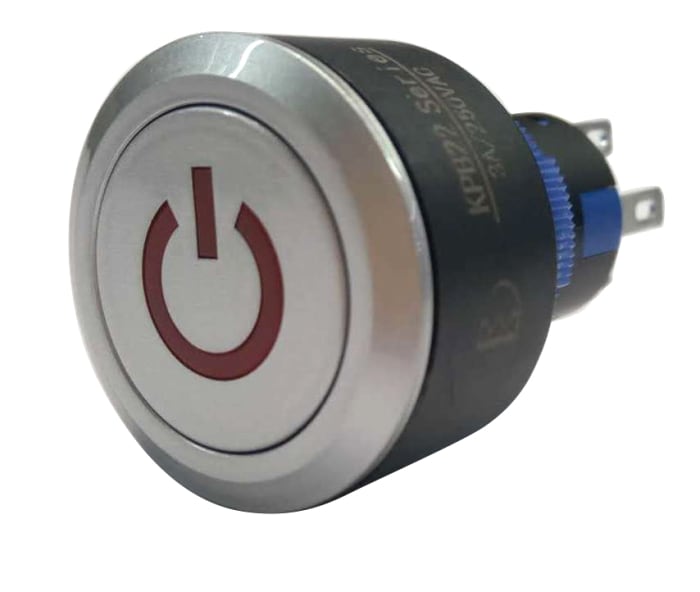

Push Button Switch
Actuator Colour
Silver
Switch Operation
Momentary
Illuminated
Yes
Panel Cutout Size
22.2 mm
Series
KPB22
Mount Type
Panel
Contact Configuration
SPDT
Terminal Type
Solder
LED Colour
Red
IP Rating
IP65
Minimum Operating Temperature
-35°C
Contact DC Voltage
36V dc
Contact AC Voltage
250V ac
Actuator Style
Flat
Maximum Operating Temperature
70°C
Standards/Approvals
UL 94 V0, UL 94 V
Switch Contact Current
5A
Legend
Power Symbol
Country of Origin
China
Stock information temporarily unavailable.
2,210.50 MOP
110.527 MOP Each (In a Tray of 20) (ex VAT)
20
2,210.50 MOP
110.527 MOP Each (In a Tray of 20) (ex VAT)
Stock information temporarily unavailable.
20
| quantity | Unit price | Per Tray |
|---|---|---|
| 20 - 20 | 110.527 MOP | 2,210.55 MOP |
| 40 - 180 | 108.096 MOP | 2,161.92 MOP |
| 200+ | 88.963 MOP | 1,779.25 MOP |
