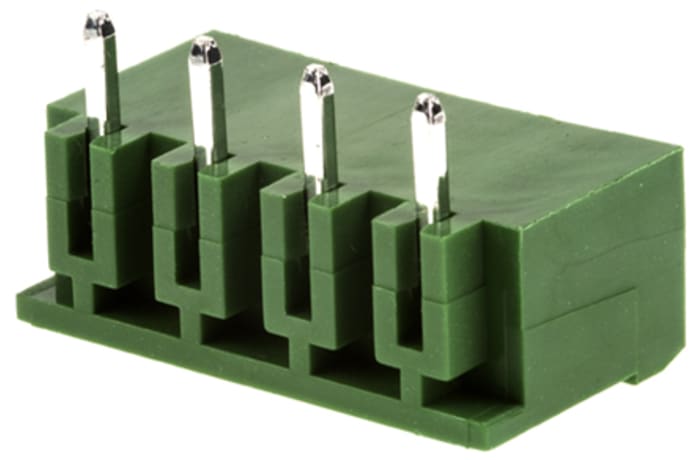

RS PRO Right Angle Through Hole Pluggable Terminal Block, 4 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded
Technical Document
Specifications
Brand
RS ProProduct Type
Pluggable Terminal Block
Pitch
5.08mm
Current
16A
Housing Material
Polyamide
Number of Contacts
4
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Mount Type
Through Hole
Contact Material
Brass
Contact Plating
Tin
Minimum Operating Temperature
-40°C
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
105°C
Standards/Approvals
No
Voltage
300 V
Country of Origin
Taiwan, Province Of China
Product details
5.08 mm Pitch Terminal Block Headers
A professional range of Wire-to-Board 2-part Terminal Block Through Hole PCB mount Shrouded Pin Headers with 5.08 mm pitch.
For mating 2-part Terminal Block Plugs see typical stock numbers 790-0695 .
Various positions available.
Stock information temporarily unavailable.
32.30 MOP
6.451 MOP Each (In a Pack of 5) (ex VAT)
5
32.30 MOP
6.451 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 120 | 6.451 MOP | 32.26 MOP |
| 125 - 370 | 6.265 MOP | 31.33 MOP |
| 375 - 995 | 6.059 MOP | 30.30 MOP |
| 1000 - 4995 | 5.936 MOP | 29.68 MOP |
| 5000+ | 4.885 MOP | 24.42 MOP |
