Technical Documents
Specifications
Brand
RS ProProduct Type

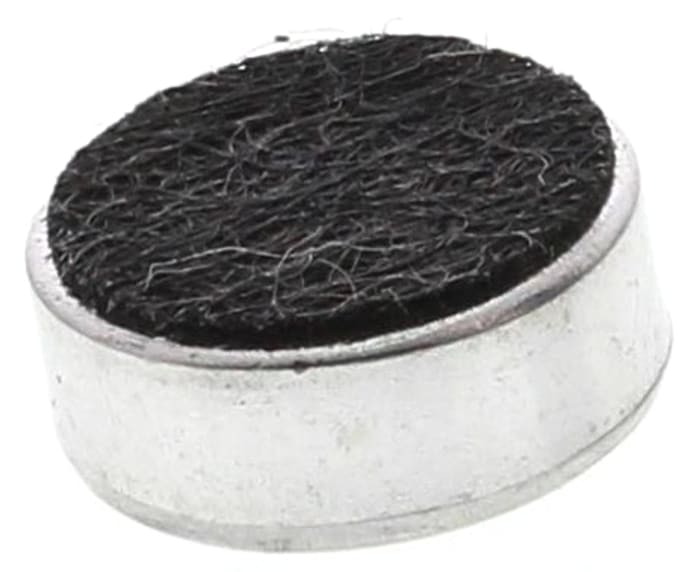

Microphone Condenser
Sensitivity
-44dB
Standard Operating Voltage
2V
Mount Type
Surface
Output Impedance
2.2kΩ
Signal to Noise Ratio
58dB
Diameter
6mm
Maximum Frequency
16kHz
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
60°C
Minimum Frequency
50Hz
Termination Style
Solder Pad
Height
2.2mm
Standards/Approvals
RoHS
Supply Current
0.5mA
Country of Origin
China
Product Details
Stock information temporarily unavailable.
30.70 MOP
15.354 MOP Each (In a Pack of 2) (ex VAT)
2
30.70 MOP
15.354 MOP Each (In a Pack of 2) (ex VAT)
Stock information temporarily unavailable.
2
| quantity | Unit price | Per Pack |
|---|---|---|
| 2 - 24 | 15.354 MOP | 30.71 MOP |
| 26 - 128 | 15.045 MOP | 30.09 MOP |
| 130+ | 12.314 MOP | 24.63 MOP |
