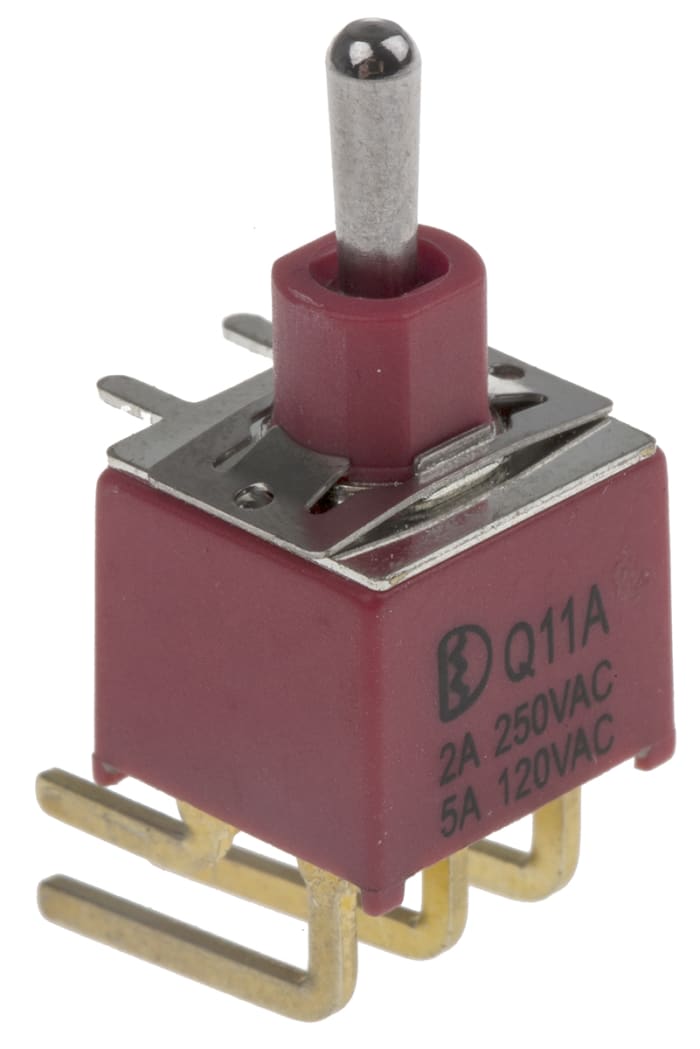

RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal

Name: RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal
Brand: RS PRO
SKU: 7346952
Availability: LimitedAvailability

RS Stock No.: 734-6952Brand: RS PRO

View all in Toggle Switches

Technical Documents

Specifications

Brand

RS Pro

Product Type

Toggle Switch

Contact Configuration

DPDT

Switch Operation

On-Off-On

Mount Type

PCB

Terminal Type

Through Hole

IP Rating

IP67

Actuator Length

7.62mm

Minimum Operating Temperature

-30°C

Actuator Material

Chrome Plated Brass

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS & Lead Free

Mechanical Life

30000Cycles

Country of Origin

Taiwan, Province Of China

Product Details

IP67 Sealed Miniature Toggle Switches - RS Series

IP67 rated RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms at sea level.

View all in Toggle Switches

Stock information temporarily unavailable.

22.70 MOP

22.74 MOP Each (ex VAT)
