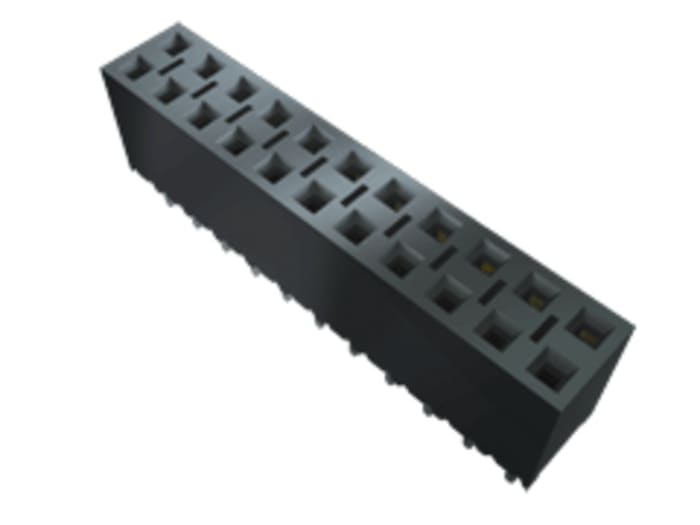

Samtec BCS Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch Solder

RS Stock No.: 159-2966Brand: SamtecManufacturers Part No.: BCS-108-L-D-PE
brand-logo
View all in PCB Sockets

Technical Document

Specifications

Brand

Samtec

Number of Contacts

16

Product Type

PCB Socket

Number of Rows

2

Sub Type

Board-to-Board

Pitch

2.54mm

Current

4.6A

Housing Material

Liquid Crystal Polymer

Termination Type

Solder

Mount Type

Through Hole

Orientation

Straight

Connector System

Board-to-Board

Voltage

475 V

Series

BCS

Minimum Operating Temperature

-55°C

Row Pitch

2.54mm

Contact Plating

Gold

Maximum Operating Temperature

125°C

Contact Material

Bronze

Standards/Approvals

No

Country of Origin

United States

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
View all in PCB Sockets

Stock information temporarily unavailable.

916.60 MOP

32.737 MOP Each (In a Tube of 28) (ex VAT)

Samtec BCS Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch Solder

28

Available in multiples of 28
28916.60 MOP
561,787.40 MOP
842,681.20 MOP
1123,574.90 MOP
1404,468.60 MOP
1685,362.30 MOP
1966,256.10 MOP
2247,149.80 MOP
2528,043.50 MOP
2808,043.50 MOP
3088,847.80 MOP
3369,652.20 MOP
36410,456.50 MOP
39211,260.90 MOP
42012,065.20 MOP

916.60 MOP

32.737 MOP Each (In a Tube of 28) (ex VAT)

Samtec BCS Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch Solder

Stock information temporarily unavailable.

28

Available in multiples of 28
28916.60 MOP
561,787.40 MOP
842,681.20 MOP
1123,574.90 MOP
1404,468.60 MOP
1685,362.30 MOP
1966,256.10 MOP
2247,149.80 MOP
2528,043.50 MOP
2808,043.50 MOP
3088,847.80 MOP
3369,652.20 MOP
36410,456.50 MOP
39211,260.90 MOP
42012,065.20 MOP

quantityUnit pricePer Tube
28 - 2832.737 MOP916.64 MOP
56 - 25231.919 MOP893.72 MOP
280+28.727 MOP804.35 MOP
