Specifications
Brand
SamtecNumber of Contacts
120
Product Type
PCB Socket
Number of Rows
2
Sub Type
Board-to-Board
Pitch
0.5mm
Current
2A
Termination Type
Solder
Housing Material
Black Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Series
BSH
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold over Tin
Standards/Approvals
RoHS
Product Details

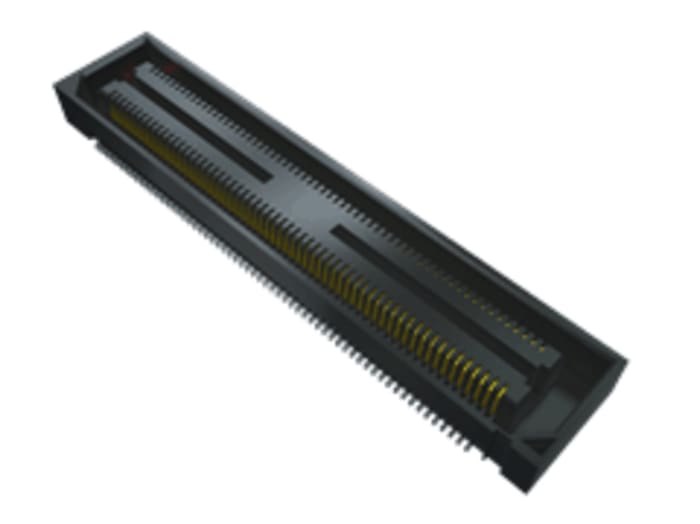

The Samtec BSH series is a 0.5mm Basic blade and beam socket strip with 120 contact points.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
4,693.70 MOP
62.583 MOP Each (In a Tray of 75) (ex VAT)
75
4,693.70 MOP
62.583 MOP Each (In a Tray of 75) (ex VAT)
Stock information temporarily unavailable.
75
| quantity | Unit price | Per Tray |
|---|---|---|
| 75 - 300 | 62.583 MOP | 4,693.69 MOP |
| 375+ | 56.324 MOP | 4,224.32 MOP |
