Technical Documents
Specifications
Brand
SamtecNumber of Contacts
120
Product Type
PCB Socket
Number of Rows
2
Sub Type
Blade and Beam Socket Strip
Pitch
0.8mm
Current
2A
Housing Material
Liquid Crystal Polymer
Termination Type
Solder
Mount Type
Surface
Orientation
Straight
Connector System
Board-to-Board
Stacking Height
5mm
Voltage
225V
Series
BTE
Minimum Operating Temperature
-55°C
Row Pitch
6.17mm
Contact Plating
Gold
Maximum Operating Temperature
105°C
Contact Material
Phosphor Bronze
Standards/Approvals
No
Product Details

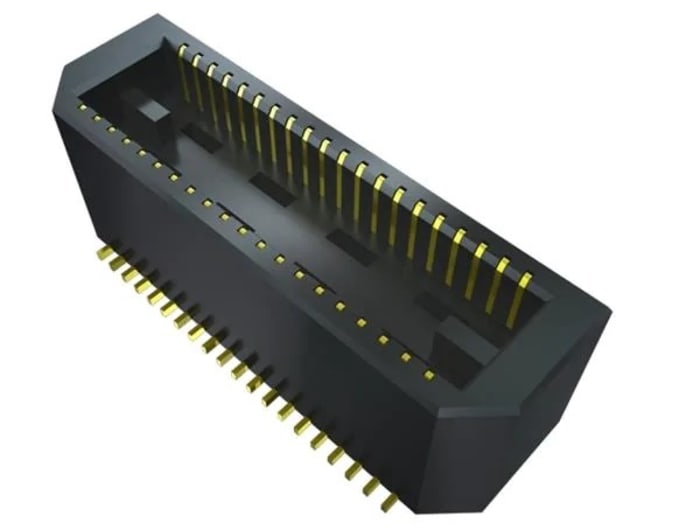

The Samtec BTE series 0.80mm basic blade & beam header has 60 positions per row and 1 lead style. It has 0.0000762mm flash selective gold in contact area and matte tin tails.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
35,822.10 MOP
84.287 MOP Each (On a Reel of 425) (ex VAT)
425
35,822.10 MOP
84.287 MOP Each (On a Reel of 425) (ex VAT)
Stock information temporarily unavailable.
425
| quantity | Unit price | Per Reel |
|---|---|---|
| 425 - 1700 | 84.287 MOP | 35,822.15 MOP |
| 2125+ | 75.859 MOP | 32,239.94 MOP |
