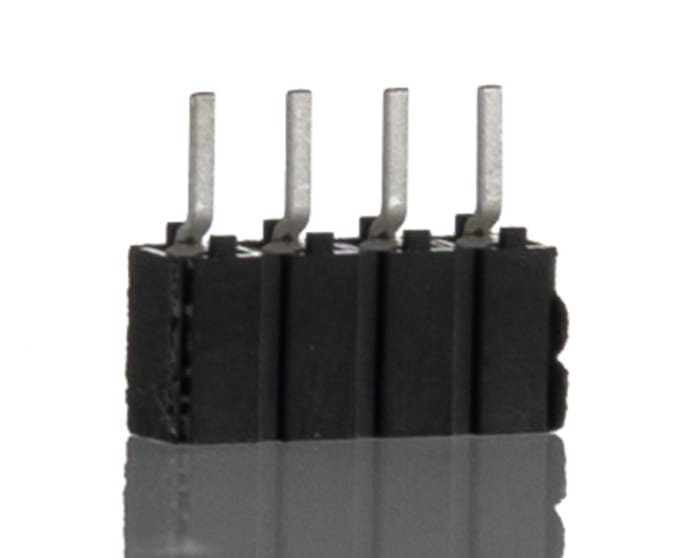

Samtec CES Series Straight Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch Solder

Samtec CES Series PCB Socket, 4 Contacts, Through-Hole Mount - CES-104-01-T-S

This low-profile PCB socket from the CES series features a compact design with four contacts arranged in a single row. It has through-hole mounting for stable attachment to printed circuit boards and an operating temperature range of -55°C to +125°C when using gold. The matte tin contact plating ensures durability and efficient electrical connections.

Features & Benefits

• Straight body orientation simplifies installation and reduces assembly time
• Solder termination provides robust and durable connections
• Constructed from bronze with matte tin plating for enhanced conductivity
• RoHS compliant for environmentally friendly manufacturing

Applications

• Suitable for automation equipment and control systems
• Commonly integrated into consumer electronics and appliances
• Ideal for electrical and mechanical assemblies requiring compact connectors

Can it handle high current applications effectively?

Yes, it supports a current rating of 5.5A.

Is it suitable for high-voltage applications?

Yes, it has a voltage rating of 400V AC.

Will it be easy to install on a PCB?

Yes, the through-hole design allows for straightforward installation.

Is it compatible with other connector styles?

Yes, it mates with various board-to-board connector types.
