Technical Documents
Specifications
Brand
SamtecNumber of Contacts
1
Product Type
PCB Socket
Number of Rows
1
Sub Type
Socket
Pitch
2.54mm
Current
5.7A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Vertical
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
RoHS
Product Details

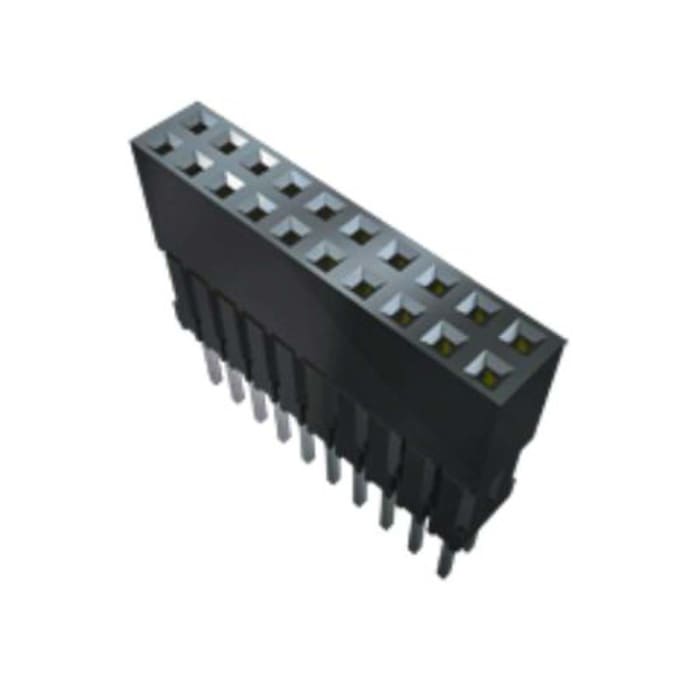

The Samtec PCB Socket has Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
11.90 MOP
11.85 MOP Each (ex VAT)
1
11.90 MOP
11.85 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | 11.85 MOP |
| 10 - 49 | 11.44 MOP |
| 50 - 99 | 11.13 MOP |
| 100 - 249 | 10.92 MOP |
| 250+ | 10.72 MOP |
