Technical Documents
Specifications
Brand
SamtecProduct Type
PCB Socket
Number of Contacts
2
Number of Rows
1
Sub Type
Board-to-Board
Pitch
2.54mm
Current
5.2A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Straight
Series
ESQ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold over Tin
Standards/Approvals
RoHS
Product Details

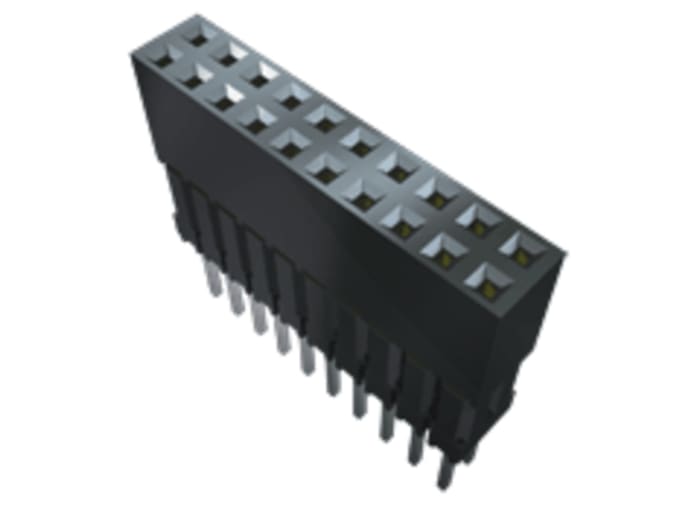

The Samtec ESQ is 2.54 mm PC/104 elevated socket strip with 2 contact points.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
13.10 MOP
13.09 MOP Each (ex VAT)
1
13.10 MOP
13.09 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | 13.09 MOP |
| 10 - 24 | 12.68 MOP |
| 25 - 49 | 12.26 MOP |
| 50 - 99 | 12.06 MOP |
| 100+ | 11.75 MOP |
