Technical Documents
Specifications
Brand
SamtecNumber of Contacts
5
Product Type
PCB Socket
Number of Rows
1
Sub Type
Board-to-Board
Pitch
2.54mm
Current
5.7A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Vertical
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
RoHS
Product Details

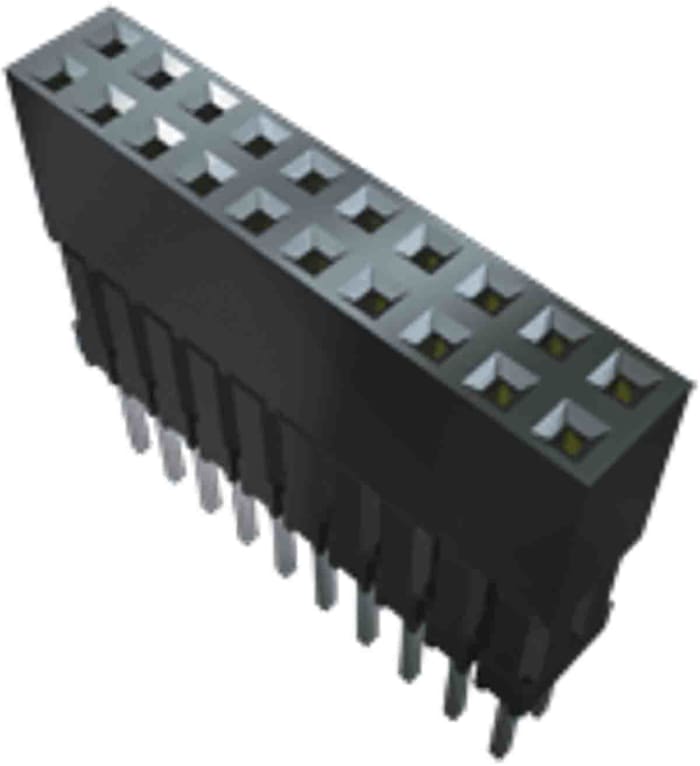

The Samtec ESQ-105-14-G-S is an ESQ series elevated socket. It has standard and low insertion force contacts with 0.635mm square tails for PC/104 applications. Its contacts are made up of phosphor bronze.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
755.80 MOP
17.576 MOP Each (In a Tube of 43) (ex VAT)
43
755.80 MOP
17.576 MOP Each (In a Tube of 43) (ex VAT)
Stock information temporarily unavailable.
43
| quantity | Unit price | Per Tube |
|---|---|---|
| 43 - 172 | 17.576 MOP | 755.77 MOP |
| 215 - 387 | 17.26 MOP | 742.17 MOP |
| 430+ | 16.948 MOP | 728.77 MOP |
