Technical Documents
Specifications
Brand
SamtecNumber of Contacts
10
Product Type
PCB Socket
Number of Rows
1
Sub Type
Socket
Current
5.7A
Pitch
2.54mm
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Vertical
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Row Pitch
2.54mm
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
No
Product Details

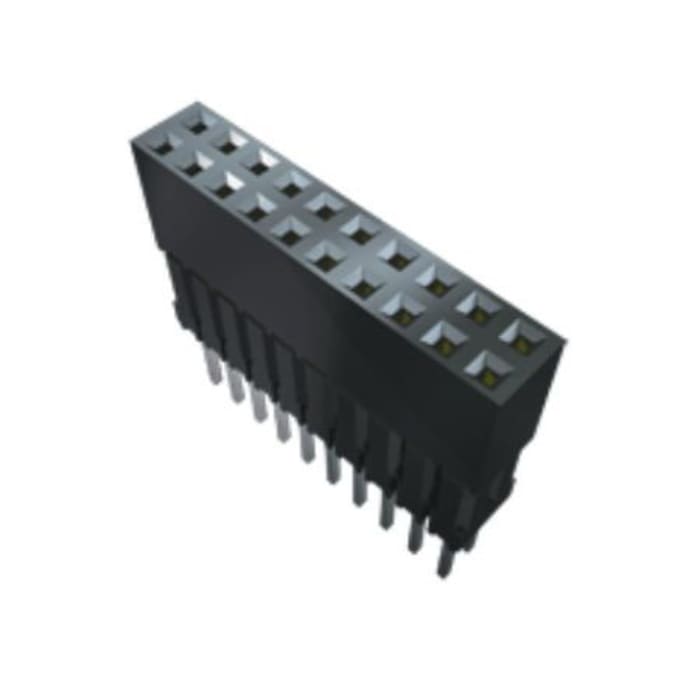

The Samtec PCB Socket has Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
600.40 MOP
27.29 MOP Each (In a Tube of 22) (ex VAT)
22
600.40 MOP
27.29 MOP Each (In a Tube of 22) (ex VAT)
Stock information temporarily unavailable.
22
| quantity | Unit price | Per Tube |
|---|---|---|
| 22 - 66 | 27.29 MOP | 600.37 MOP |
| 88 - 154 | 26.606 MOP | 585.32 MOP |
| 176+ | 26.198 MOP | 576.36 MOP |
