Technical Documents
Specifications
Brand
SamtecNumber of Contacts
15
Product Type
PCB Socket
Sub Type
PCB Socket
Number of Rows
2
Pitch
2.54mm
Current
5.7A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Contact Material
Phosphor Bronze
Contact Plating
Gold
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product Details

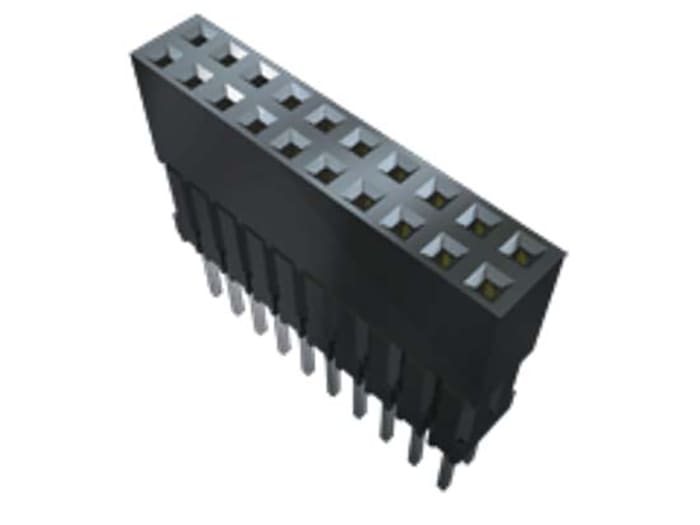

The Samtec ESQ series elevated socket strip with double row. It has phosphor bronze as contact material and black glass filled polymer as insulator material.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
939.40 MOP
67.10 MOP Each (In a Tube of 14) (ex VAT)
14
939.40 MOP
67.10 MOP Each (In a Tube of 14) (ex VAT)
Stock information temporarily unavailable.
14
| quantity | Unit price | Per Tube |
|---|---|---|
| 14 - 14 | 67.10 MOP | 939.40 MOP |
| 28 - 42 | 65.422 MOP | 915.91 MOP |
| 56+ | 64.414 MOP | 901.79 MOP |
