Technical Documents
Specifications
Brand
SamtecNumber of Contacts
40
Product Type
PCB Socket
Number of Rows
2
Sub Type
Board-to-Board
Pitch
2.54mm
Current
5.7A
Housing Material
Black Glass Filled Polyester
Termination Type
Solder
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Contact Material
Phosphor Bronze
Contact Plating
Gold
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product Details

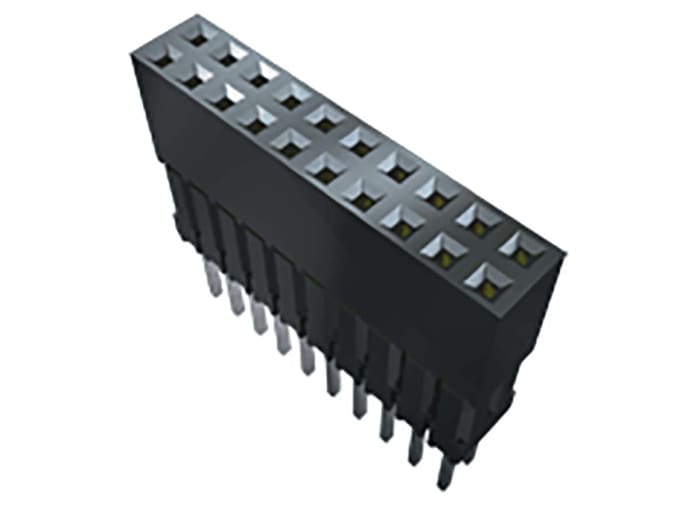

The Samtec ESQ-120-13-L-D is an ESQ series elevated socket. It has standard and low insertion force contacts with 0.635mm square tails for PC/104 applications. Its contacts are made up of phosphor bronze.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
829.50 MOP
75.409 MOP Each (In a Tube of 11) (ex VAT)
11
829.50 MOP
75.409 MOP Each (In a Tube of 11) (ex VAT)
Stock information temporarily unavailable.
11
| quantity | Unit price | Per Tube |
|---|---|---|
| 11 - 11 | 75.409 MOP | 829.50 MOP |
| 22 - 33 | 73.523 MOP | 808.76 MOP |
| 44+ | 72.393 MOP | 796.32 MOP |
