Technical Documents
Specifications
Brand
SamtecNumber of Contacts
40
Product Type
PCB Socket
Number of Rows
2
Sub Type
Board-to-Board
Pitch
2.54mm
Current
5.2A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Straight
Series
ESQ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold over Tin
Standards/Approvals
RoHS
Product Details

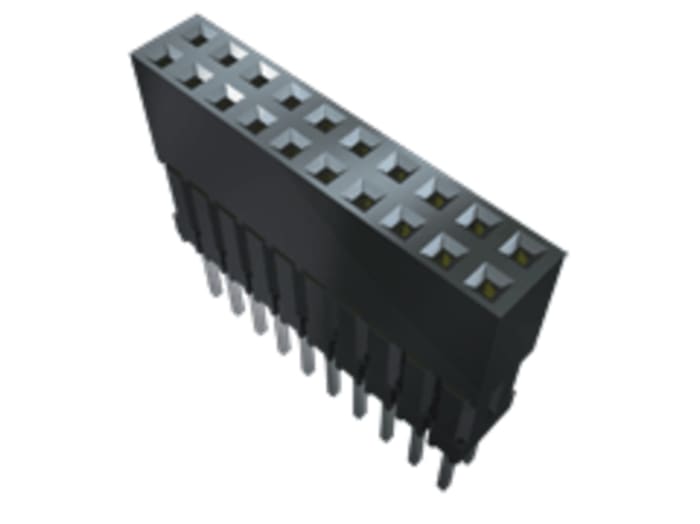

The Samtec ESQ is 2.54 mm PC/104 elevated socket strip with 40 contact points.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
910.60 MOP
82.78 MOP Each (In a Tube of 11) (ex VAT)
11
910.60 MOP
82.78 MOP Each (In a Tube of 11) (ex VAT)
Stock information temporarily unavailable.
11
| quantity | Unit price | Per Tube |
|---|---|---|
| 11 - 11 | 82.78 MOP | 910.58 MOP |
| 22 - 33 | 80.711 MOP | 887.82 MOP |
| 44+ | 79.469 MOP | 874.16 MOP |
