Technical Documents
Specifications
Brand
SamtecNumber of Contacts
3
Product Type
PCB Socket
Sub Type
Board-to-Board
Number of Rows
1
Current
4.6A
Pitch
2.54mm
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Straight
Series
ESW
Minimum Operating Temperature
-55°C
Contact Material
Phosphor Bronze
Contact Plating
Gold over Tin
Maximum Operating Temperature
125°C
Standards/Approvals
RoHS
Product Details

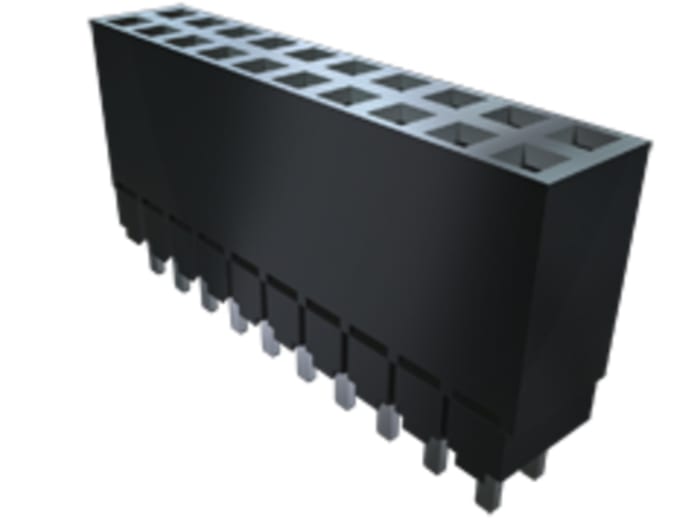

The Samtec ESW series is a 2.54mm PC/104 elevated socket strip with 3 contact points.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
7.50 MOP
7.54 MOP Each (ex VAT)
1
7.50 MOP
7.54 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | 7.54 MOP |
| 5+ | 6.78 MOP |
