Technical Documents
Specifications
Brand
SamtecNumber of Contacts
40
Product Type
PCB Socket
Number of Rows
2
Sub Type
Socket
Pitch
2.54mm
Current
5.2A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Vertical
Connector System
Board-to-Board
Voltage
515V
Series
ESW
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Maximum Operating Temperature
105°C
Contact Material
Phosphor Bronze
Contact Plating
Matt Tin
Standards/Approvals
No
Product Details

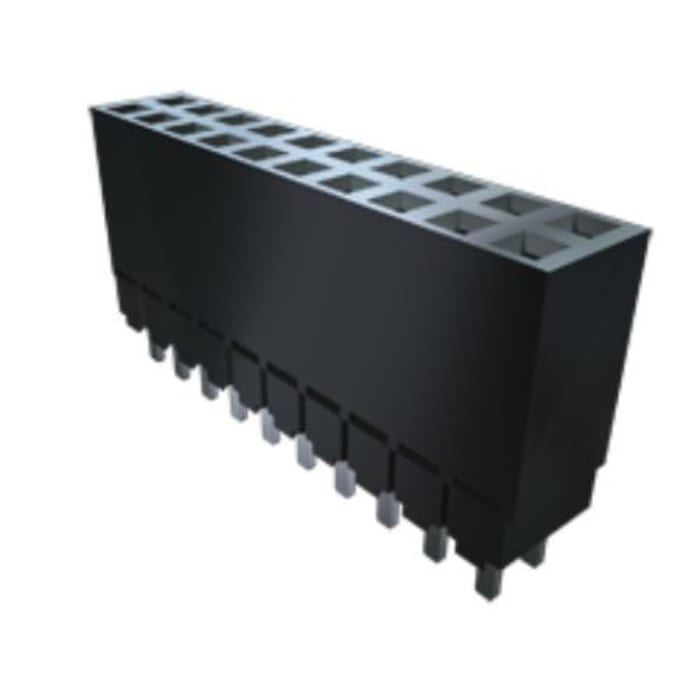

The Samtec PCB Socket has Standard and low insertion force contacts with standard solder tails.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
461.90 MOP
41.99 MOP Each (In a Tube of 11) (ex VAT)
11
461.90 MOP
41.99 MOP Each (In a Tube of 11) (ex VAT)
Stock information temporarily unavailable.
11
| quantity | Unit price | Per Tube |
|---|---|---|
| 11 - 11 | 41.99 MOP | 461.89 MOP |
| 22 - 33 | 40.94 MOP | 450.34 MOP |
| 44+ | 40.309 MOP | 443.40 MOP |
