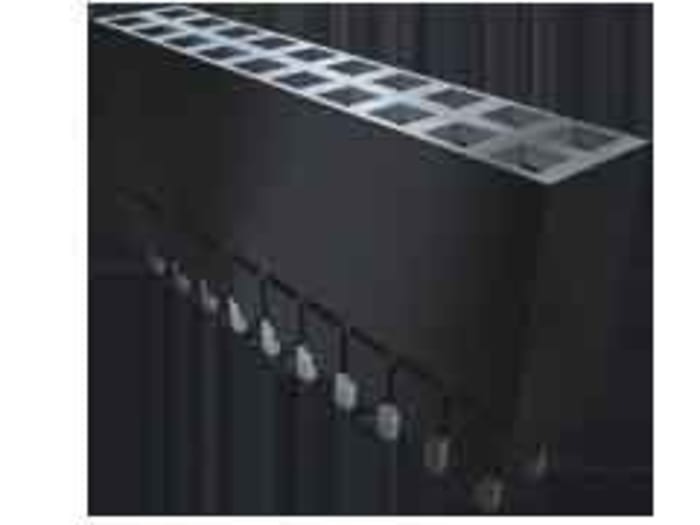

Samtec ESW Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder

RS Stock No.: 180-3533Brand: SamtecManufacturers Part No.: ESW-120-23-G-D
brand-logo
View all in PCB Sockets

Technical Document

Specifications

Brand

Samtec

Number of Contacts

40

Product Type

PCB Socket

Sub Type

Elevated Socket

Number of Rows

2

Pitch

2.54mm

Current

5.2A

Termination Type

Solder

Housing Material

Black Glass Filled Polyester

Mount Type

Through Hole

Orientation

Straight

Connector System

Board-to-Board

Voltage

550 V

Series

ESW

Minimum Operating Temperature

-55°C

Row Pitch

2.54mm

Maximum Operating Temperature

125°C

Contact Material

Bronze

Contact Plating

Gold

Standards/Approvals

No
