Technical Documents
Specifications
Brand
SamtecNumber of Contacts
40
Product Type
PCB Socket
Number of Rows
2
Sub Type
Power-to-the Board
Pitch
2.54mm
Current
4.8A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Through Hole
Orientation
Right Angle
Connector System
Board-to-Board
Voltage
775V
Series
IPS1
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
RoHS
Product Details
2

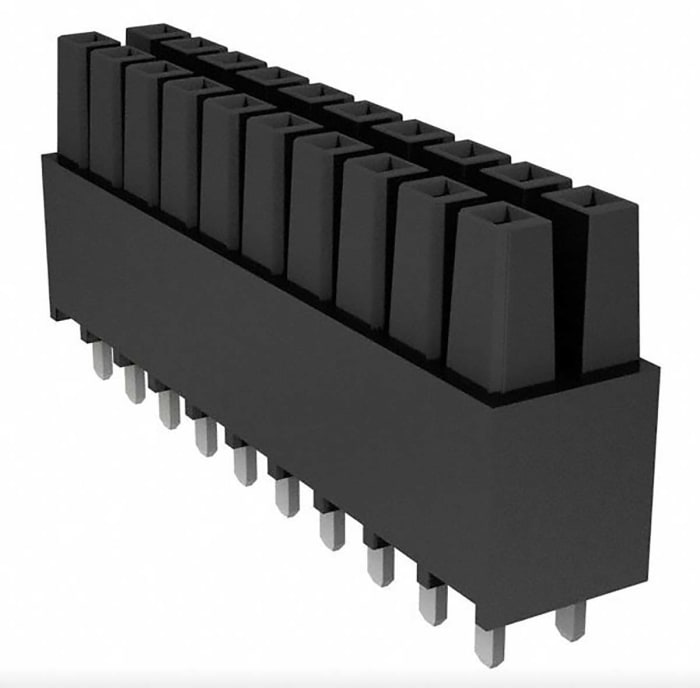

The Samtec IPS1 series is shrouded power connector. And available with optional locking clip.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
948.90 MOP
86.262 MOP Each (In a Tube of 11) (ex VAT)
11
948.90 MOP
86.262 MOP Each (In a Tube of 11) (ex VAT)
Stock information temporarily unavailable.
11
| quantity | Unit price | Per Tube |
|---|---|---|
| 11 - 11 | 86.262 MOP | 948.88 MOP |
| 22 - 33 | 84.108 MOP | 925.18 MOP |
| 44+ | 82.815 MOP | 910.96 MOP |
