Technical Documents
Specifications
Brand
SamtecNumber of Contacts
50
Product Type
PCB Socket
Number of Rows
2
Sub Type
Power-to-the Board
Pitch
2.54mm
Current
4.8A
Housing Material
Liquid Crystal Polymer
Termination Type
Solder
Mount Type
Through Hole
Orientation
Right Angle
Connector System
Board-to-Board
Voltage
775, 1095V ac
Series
IPS1
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Plating
Gold
Contact Material
Phosphor Bronze
Standards/Approvals
RoHS
Product Details
2

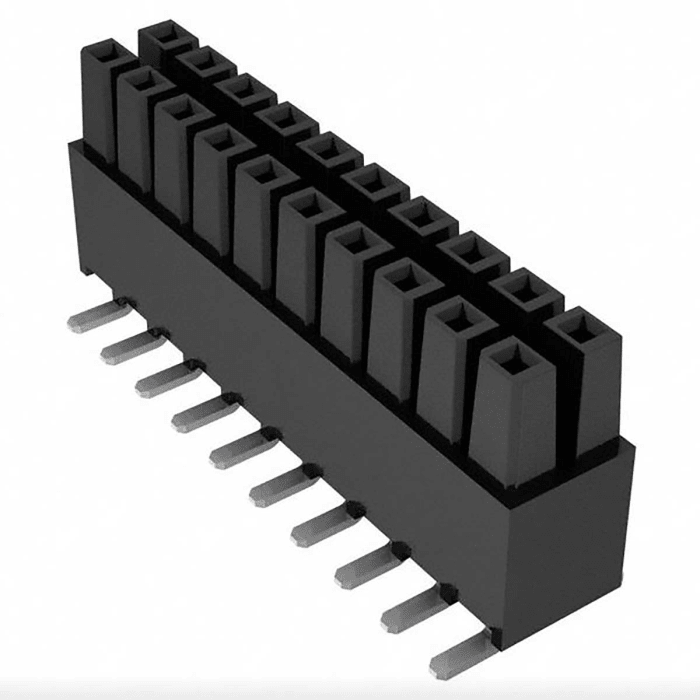

The Samtec IPS1 series is shrouded power connector. And available with optional locking clip.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
737.30 MOP
81.92 MOP Each (In a Tube of 9) (ex VAT)
9
737.30 MOP
81.92 MOP Each (In a Tube of 9) (ex VAT)
Stock information temporarily unavailable.
9
| quantity | Unit price | Per Tube |
|---|---|---|
| 9 - 9 | 81.92 MOP | 737.28 MOP |
| 18 - 27 | 79.873 MOP | 718.86 MOP |
| 36+ | 78.643 MOP | 707.79 MOP |
