Technical Documents
Specifications
Brand
SamtecNumber of Contacts
156
Product Type
PCB Socket
Number of Rows
2
Sub Type
Socket
Pitch
0.635mm
Current
15.7A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Through Hole
Orientation
Straight
Stacking Height
10mm
Connector System
Board-to-Board
Voltage
300V
Series
QFS
Minimum Operating Temperature
-55°C
Row Pitch
6.48mm
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
No
Product Details
2

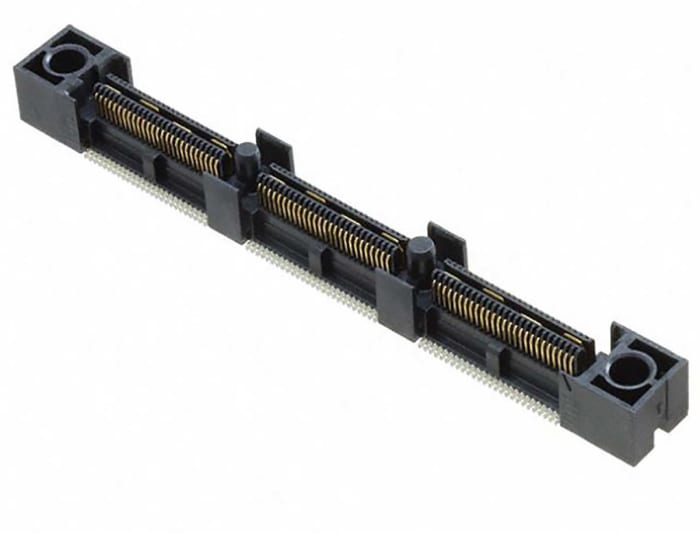

The Samtec QFS is high-speed rugged ground plane combo power socket strip.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
9,108.10 MOP
276.002 MOP Each (In a Tray of 33) (ex VAT)
33
9,108.10 MOP
276.002 MOP Each (In a Tray of 33) (ex VAT)
Stock information temporarily unavailable.
33
| quantity | Unit price | Per Tray |
|---|---|---|
| 33 - 33 | 276.002 MOP | 9,108.07 MOP |
| 66 - 99 | 269.101 MOP | 8,880.33 MOP |
| 132+ | 264.963 MOP | 8,743.79 MOP |
