Technical Documents
Specifications
Brand
SamtecNumber of Contacts
240
Product Type
PCB Socket
Number of Rows
6
Sub Type
High Speed High Density Open-Pin-Field Array Socket
Current
2.7A
Pitch
1.27mm
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Connector System
Board-to-Board
Stacking Height
18.5mm
Voltage
240V
Series
SEAF
Row Pitch
2.5mm
Minimum Operating Temperature
-55°C
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Gold
Maximum Operating Temperature
125°C
Standards/Approvals
No

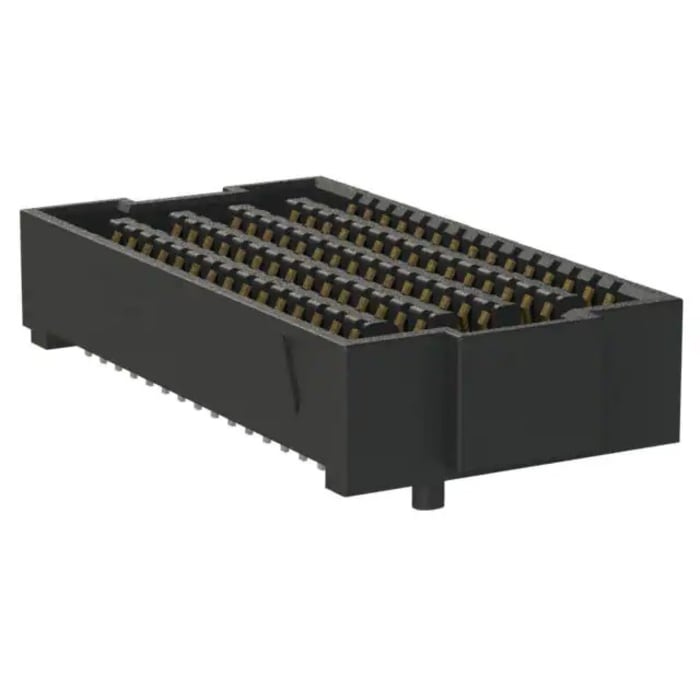

Product Details
The Samtec SEAF series 1.27mm high-speed open-pin field has 40 pins per row and 6 rows. It has 0.000762mm selective gold on contact area and matte tin on tail.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
104,315.60 MOP
278.175 MOP Each (On a Reel of 375) (ex VAT)
375
104,315.60 MOP
278.175 MOP Each (On a Reel of 375) (ex VAT)
Stock information temporarily unavailable.
375
| quantity | Unit price | Per Reel |
|---|---|---|
| 375 - 1500 | 278.175 MOP | 104,315.56 MOP |
| 1875+ | 250.357 MOP | 93,884.01 MOP |
