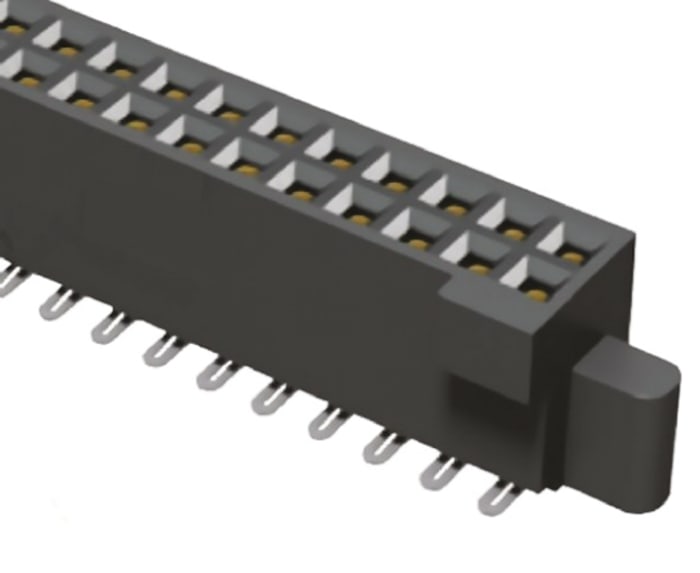

Samtec SFM Series Straight Surface PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch Solder

Name: Samtec SFM Series Straight Surface PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch Solder
Brand: Samtec
SKU: 7679079
Availability: LimitedAvailability

RS Stock No.: 767-9079Brand: SamtecManufacturers Part No.: SFM-107-02-L-D

View all in PCB Sockets

Technical Documents

Specifications

Brand

Samtec

Number of Contacts

Product Type

PCB Socket

Number of Rows

Sub Type

Board-to-Board

Pitch

1.27mm

Current

12A

Termination Type

Solder

Housing Material

Liquid Crystal Polymer

Mount Type

Surface

Orientation

Straight

Stacking Height

12mm

Connector System

Board-to-Board, Cable

Voltage

350V

Series

SFM

Minimum Operating Temperature

-55°C

Row Pitch

1.27mm

Contact Gender

Female

Maximum Operating Temperature

125°C

Contact Material

Beryllium Copper Alloy

Contact Plating

Gold

Standards/Approvals

Product Details

Samtec SFM Tiger Eye Series 1.27mm SMT PCB Board-to-Board Sockets

SFM Series 1.27mm dual row SMT PCB board-to-board socket strip connectors with rugged and reliable gold plated Tiger Eye contacts that have a multi-finger design for redundant points of contact. These SFM Tiger Eye series 1.27mm board-to-board SMT sockets have a body height of 4.7 mm and mate with the following:
TFM Series headers see stock number 481-4667 typically
FTS Series micro terminal strips see stock number 481-4702 typically
FTSH Series micro headers see stock number 767-6774 typically
