Technical Documents
Specifications
Brand
SamtecNumber of Contacts
14
Product Type
PCB Socket
Number of Rows
2
Sub Type
High Reliability Socket Strip
Pitch
1.27mm
Current
3.2A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Stacking Height
12mm
Connector System
Cable, Board-to-Board
Voltage
250V
Series
SFM
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Contact Plating
Gold
Standards/Approvals
No
Product Details

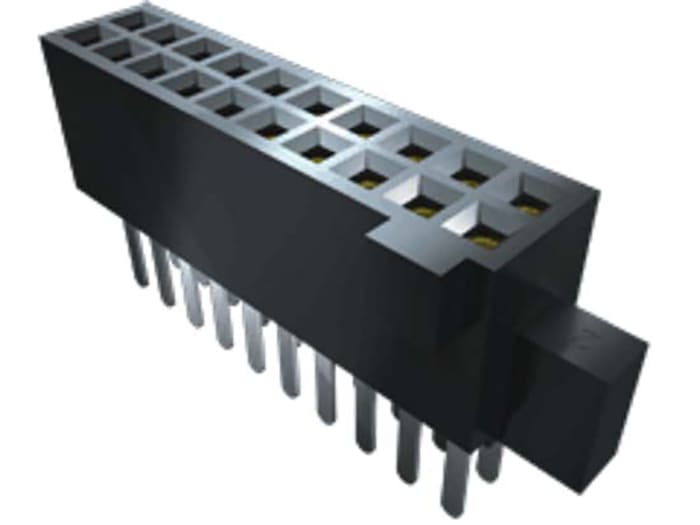

The Samtec SFM series high-reliability socket strip is a 14 pin connector. It has a pole pitch of 1.27 mm. The Insulation material used is of black liquid crystal polymer.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
2,273.60 MOP
47.367 MOP Each (In a Tube of 48) (ex VAT)
48
2,273.60 MOP
47.367 MOP Each (In a Tube of 48) (ex VAT)
Stock information temporarily unavailable.
48
| quantity | Unit price | Per Tube |
|---|---|---|
| 48 - 48 | 47.367 MOP | 2,273.59 MOP |
| 96 - 144 | 46.181 MOP | 2,216.71 MOP |
| 192+ | 45.471 MOP | 2,182.60 MOP |
