Technical Documents
Specifications
Brand
SamtecNumber of Contacts
30
Product Type
PCB Socket
Number of Rows
2
Sub Type
High Reliability Socket Strip
Pitch
1.27mm
Current
3.2A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Connector System
Board-to-Board, Cable
Stacking Height
12mm
Voltage
250V
Series
SFM
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Contact Plating
Gold
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Standards/Approvals
No
Product Details

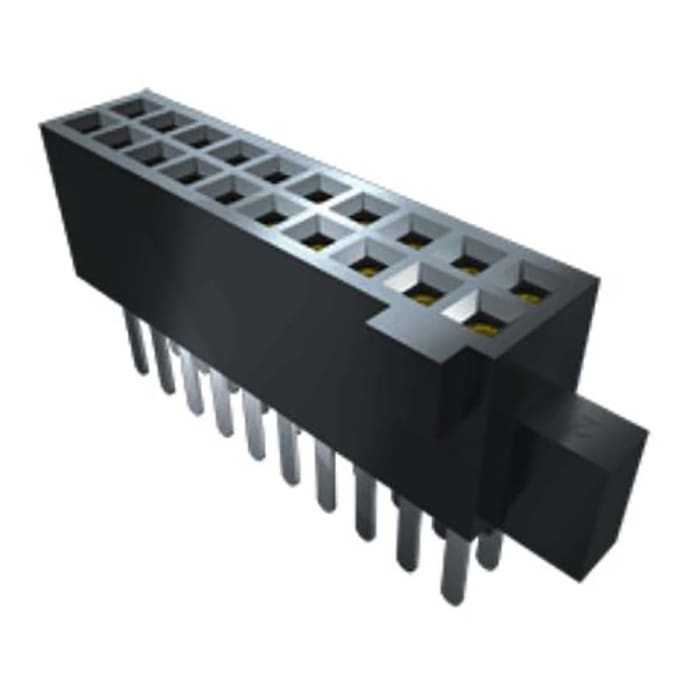

The Samtec SFM series has 1.27 mm pitch, dual row, through hole socket strip with a 0.25 μm gold plated contact and tin plated tail. It has 30 contact which has 3.2 A of current per pin.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
1,719.80 MOP
68.794 MOP Each (In a Tube of 25) (ex VAT)
25
1,719.80 MOP
68.794 MOP Each (In a Tube of 25) (ex VAT)
Stock information temporarily unavailable.
25
| quantity | Unit price | Per Tube |
|---|---|---|
| 25 - 25 | 68.794 MOP | 1,719.84 MOP |
| 50 - 75 | 67.074 MOP | 1,676.85 MOP |
| 100+ | 66.041 MOP | 1,651.04 MOP |
