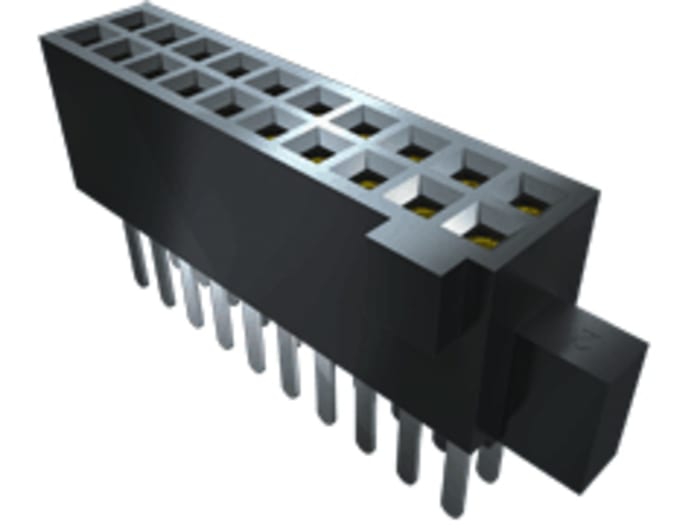

Samtec SFM Series Straight Surface PCB Socket, 40-Contact, 2 Row, 1.27 mm Pitch Solder

Name: Samtec SFM Series Straight Surface PCB Socket, 40-Contact, 2 Row, 1.27 mm Pitch Solder
Brand: Samtec
SKU: 1585695
Availability: LimitedAvailability

RS Stock No.: 158-5695Brand: SamtecManufacturers Part No.: SFM-120-02-S-D-LC

View all in PCB Sockets

Technical Documents

Specifications

Brand

Samtec

Number of Contacts

Product Type

PCB Socket

Number of Rows

Sub Type

Board-to-Board

Pitch

1.27mm

Current

3.2A

Termination Type

Solder

Housing Material

Liquid Crystal Polymer

Mount Type

Surface

Orientation

Straight

Stacking Height

12mm

Connector System

Board-to-Board, Cable

Voltage

250V

Series

SFM

Minimum Operating Temperature

-55°C

Row Pitch

1.27mm

Contact Gender

Female

Maximum Operating Temperature

125°C

Contact Material

Bronze

Contact Plating

Gold or Tin over Nickel

Standards/Approvals

Product Details

.050" Tiger Eye™ High-Reliability Socket Strip

Pitch: .050" (1.27 mm)
Contact System: Tiger Eye™
Orientation: Vertical, horizontal
Termination: Through-hole, surface mount
Application: Polarized single and double row multi-finger BeCu contact system to 100 pins
Special Features: Screw down and solder nail options available for most rugged requirements
Extended Life Product™ (E.L.P.™)

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in PCB Sockets

Stock information temporarily unavailable.

2,314.90 MOP

121.838 MOP Each (In a Tube of 19) (ex VAT)

Samtec SFM Series Straight Surface PCB Socket, 40-Contact, 2 Row, 1.27 mm Pitch Solder

2,314.90 MOP

121.838 MOP Each (In a Tube of 19) (ex VAT)

Samtec SFM Series Straight Surface PCB Socket, 40-Contact, 2 Row, 1.27 mm Pitch Solder

Stock information temporarily unavailable.

quantity	Unit price	Per Tube
19 - 19	121.838 MOP	2,314.92 MOP
38 - 57	118.795 MOP	2,257.10 MOP
76+	116.967 MOP	2,222.38 MOP
