Technical Documents
Specifications
Brand
SamtecNumber of Contacts
10
Product Type
PCB Socket
Sub Type

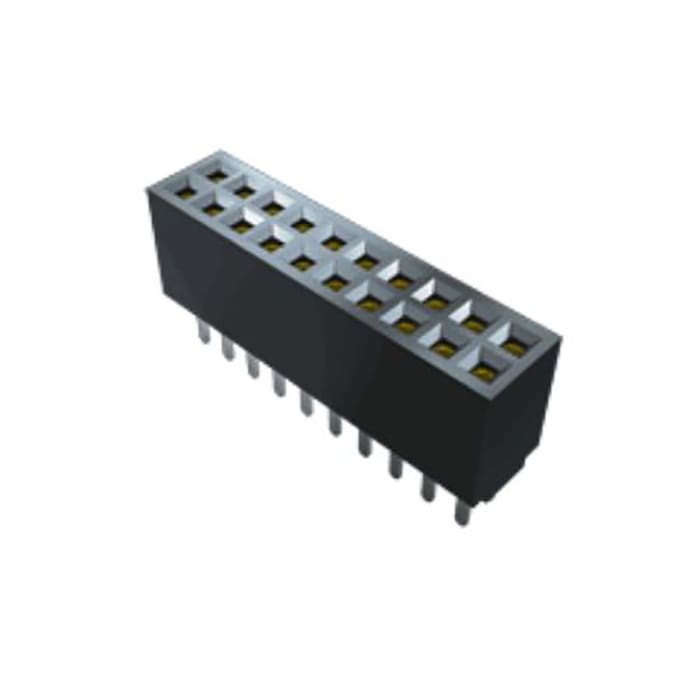

High Reliability Flexible Pin Count Socket Strip
Number of Rows
2
Pitch
1.27mm
Current
2.9A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Connector System
Board-to-Board
Voltage
310V
Series
SFMC
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Contact Plating
Gold
Standards/Approvals
No
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
2,372.80 MOP
27.916 MOP Each (In a Tube of 85) (ex VAT)
85
2,372.80 MOP
27.916 MOP Each (In a Tube of 85) (ex VAT)
Stock information temporarily unavailable.
85
| quantity | Unit price | Per Tube |
|---|---|---|
| 85 - 340 | 27.916 MOP | 2,372.83 MOP |
| 425 - 765 | 25.955 MOP | 2,206.18 MOP |
| 850+ | 24.657 MOP | 2,095.88 MOP |
