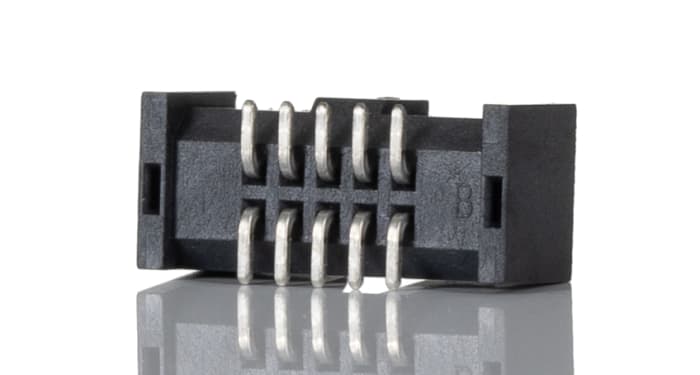

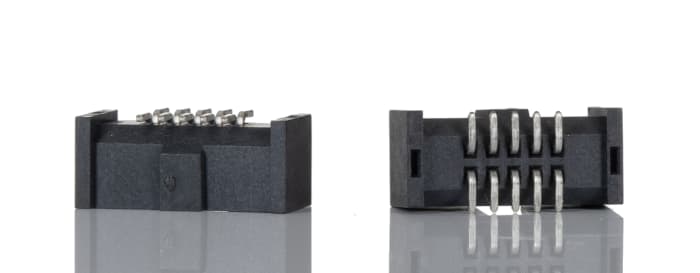

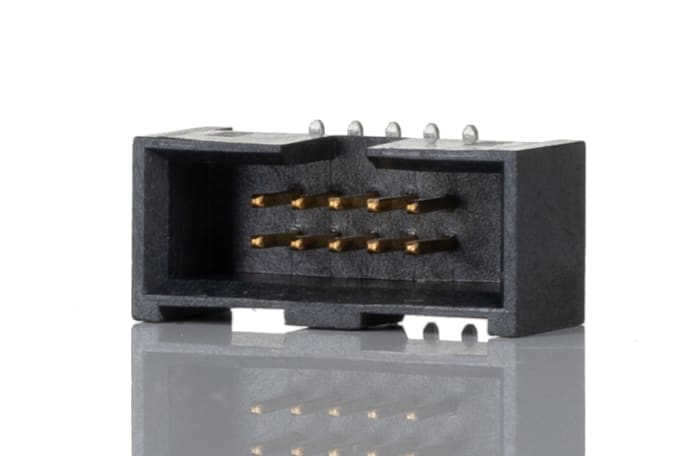

Samtec SHF Series Straight Surface PCB Header, 10 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded

Samtec PCB Header, Solder Termination Method, Wire-to-Board Connector System - SHF Series - SHF-105-01-L-D-SM

Need a smart way to link your computing applications? Reach for this 10-way PCB header from Samtec to make multiple electrical connections from a single block. It has two rows of five pins to keep your connections organised. A shrouded enclosure surrounds the pins, preventing them from bending under pressure for a locked fit to your board. As the gold-plated phosphor bronze contacts are highly conductive and resistant to corrosion, you get reliable signal transmission. Surface mounting makes installation a breeze, as you can connect the component directly to your PCB.

Features & Benefits

• Solder termination method gives a secure, vibration-proof connection
• Polarising notch helps with positioning for more accurate mating
• Suitable for use in harsh conditions, thanks to a wide operating temperature range of -55°C to +125°C

Applications

• Industrial server racks
• Smart device manufacturing
• Factory automation

What's the pitch of this PCB header?

This PCB header has a compact pitch of 1.27mm to ensure your connections take up minimal space.

What's the orientation of this PCB header?

The unit has a straight body, with contact pins sticking upright from the base to ensure straightforward mating.
