Technical Documents
Specifications
Brand
SamtecProduct Type
PCB Header
Series
SHF
Pitch
1.27mm
Number of Contacts
26
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Vertical
Shrouded/Unshrouded
Shrouded
Mount Type
Surface
Connector System
Board-to-Wire
Contact Material
Phosphor Bronze
Contact Plating
Silver, Tin
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product Details

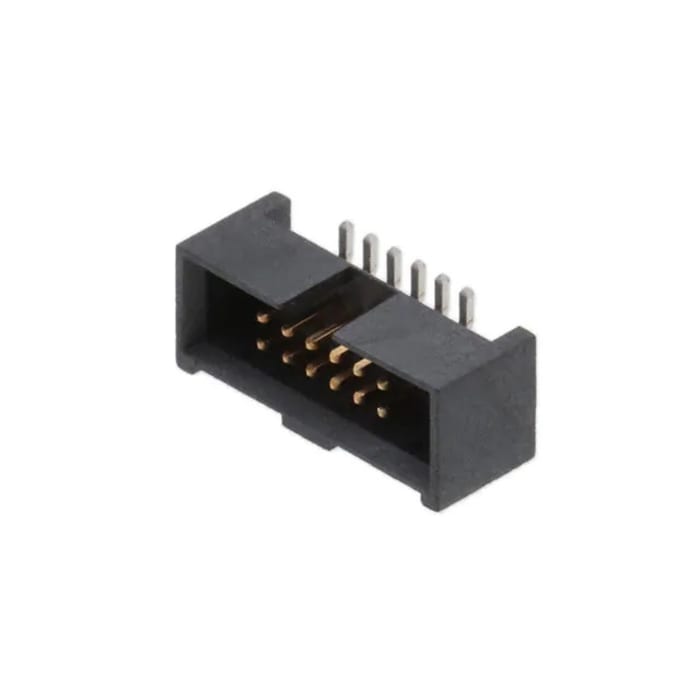

The Samtec SHF series 1.27mm shrouded & ejector IDC header has 13 positions per row and 1 lead style. It has 0.000254mm light selective gold in contact area and matte tin on tail.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
16,832.70 MOP
48.093 MOP Each (On a Reel of 350) (ex VAT)
350
16,832.70 MOP
48.093 MOP Each (On a Reel of 350) (ex VAT)
Stock information temporarily unavailable.
350
| quantity | Unit price | Per Reel |
|---|---|---|
| 350 - 1400 | 48.093 MOP | 16,832.70 MOP |
| 1750+ | 43.284 MOP | 15,149.38 MOP |
