Technical Documents
Specifications
Brand
SamtecNumber of Contacts
18
Product Type
PCB Socket
Number of Rows
1
Sub Type
Low Profile Socket Strip
Pitch
1.27mm
Current
5.2A
Termination Type
Solder
Housing Material
Polyester
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Series
SLM
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
No
Product Details

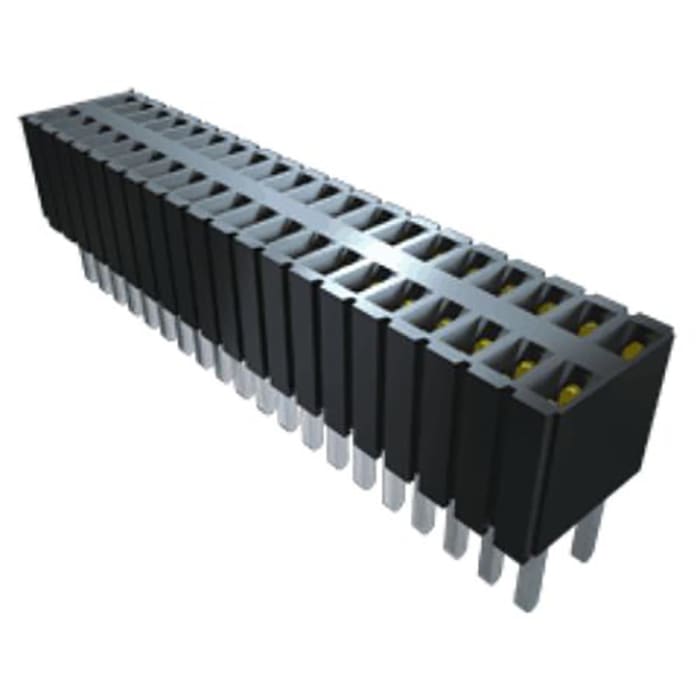

The Samtec 1.27 mm through-hole micro socket has 18 position with 0.51 μm gold on contact matte tin on tail.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
853.30 MOP
34.13 MOP Each (In a Tube of 25) (ex VAT)
25
853.30 MOP
34.13 MOP Each (In a Tube of 25) (ex VAT)
Stock information temporarily unavailable.
25
| quantity | Unit price | Per Tube |
|---|---|---|
| 25 - 25 | 34.13 MOP | 853.25 MOP |
| 50 - 75 | 33.277 MOP | 831.92 MOP |
| 100+ | 32.766 MOP | 819.14 MOP |
