Technical Documents
Specifications
Brand
SamtecNumber of Contacts
44
Product Type
PCB Socket
Sub Type
SQ Post Socket
Number of Rows
2
Current
4.7A
Pitch
2.54mm
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Voltage
655V
Series
SSW
Row Pitch
2.5mm
Minimum Operating Temperature
-55°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Contact Gender
Female
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product Details

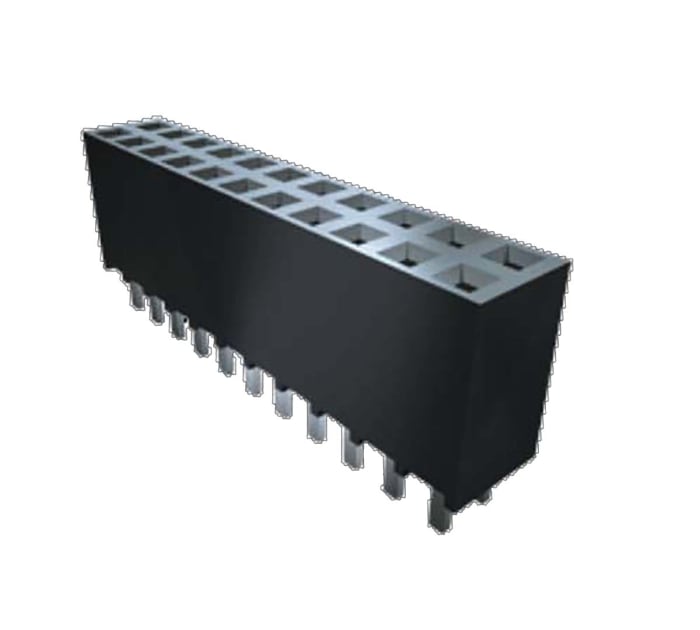

The Samtec SSW series consist of through hole SQ post socket. It has Tiger Buy™ contact system whereas it is having phosphor bronze contact material.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
69.20 MOP
69.25 MOP Each (ex VAT)
1
69.20 MOP
69.25 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | 69.25 MOP |
| 5 - 24 | 67.19 MOP |
| 25 - 99 | 65.13 MOP |
| 100 - 249 | 63.68 MOP |
| 250+ | 62.35 MOP |
