Technical Documents
Specifications
Brand
SamtecProduct Type
PCB Header
Series
T2M
Pitch
2mm
Current
3.8A
Number of Contacts
14
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Board-to-Board
Mount Type
Surface
Contact Material
Phosphor Bronze
Contact Plating
Silver, Tin
Minimum Operating Temperature
-55°C
Row Pitch
2mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
250V
Product Details

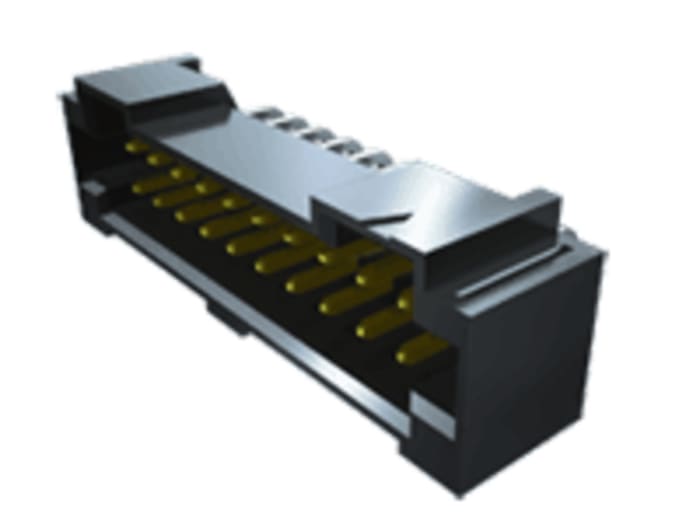

Samtec T2M series header is a 2mm Tiger Eye PCB mount Terminal strip with 14 contact pins.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
1,336.40 MOP
46.084 MOP Each (In a Tube of 29) (ex VAT)
29
1,336.40 MOP
46.084 MOP Each (In a Tube of 29) (ex VAT)
Stock information temporarily unavailable.
29
| quantity | Unit price | Per Tube |
|---|---|---|
| 29 - 29 | 46.084 MOP | 1,336.44 MOP |
| 58 - 87 | 44.932 MOP | 1,303.02 MOP |
| 116+ | 44.24 MOP | 1,282.97 MOP |
