Technical Documents
Specifications
Brand
SamtecProduct Type
PCB Header
Series
TFC
Pitch
1.27mm
Current
3.1A
Number of Contacts
6
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Vertical
Shrouded/Unshrouded
Shrouded
Connector System
Board-to-Board
Mount Type
Surface
Contact Material
Phosphor Bronze
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
350V
Product Details

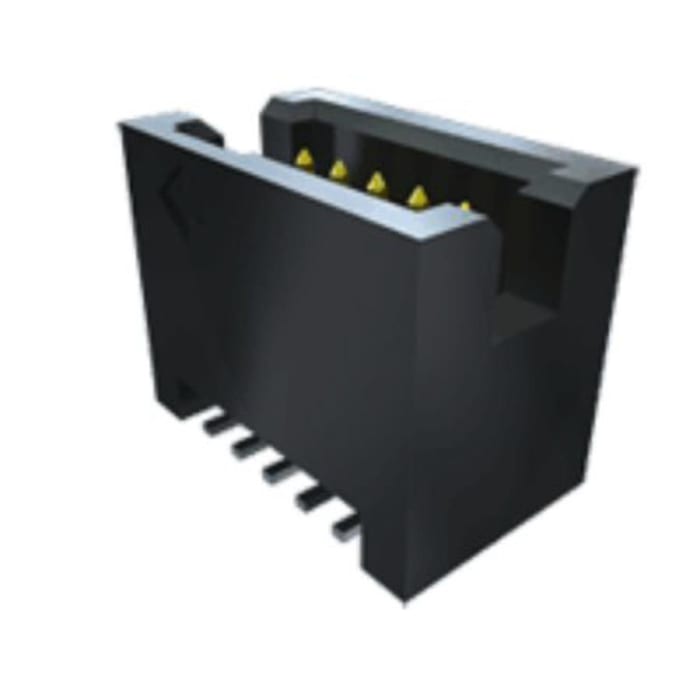

The Samtec connector header has surface mount 6 position 0.050" (1.27mm).
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
9,887.90 MOP
20.817 MOP Each (On a Reel of 475) (ex VAT)
475
9,887.90 MOP
20.817 MOP Each (On a Reel of 475) (ex VAT)
Stock information temporarily unavailable.
475
| quantity | Unit price | Per Reel |
|---|---|---|
| 475 - 1900 | 20.817 MOP | 9,887.93 MOP |
| 2375 - 4275 | 20.086 MOP | 9,540.87 MOP |
| 4750+ | 19.082 MOP | 9,063.82 MOP |
