Schneider Electric Harmony Time Series Timer Relay, 2-Contact, 24 to 240 V dc 230V ac, 1-Function, DPDT Switch
Technical Document
Specifications
Brand
Schneider ElectricProduct Type
Timer Relay
Function
Offset Double Ring End
Number of Contacts
2
Number of Timer Functions
1
Contact Configuration
DPDT
IP Rating
IP50
Contact Current
5A
Supply DC Voltage
24 to 240 V dc
Minimum Operating Temperature
-20°C
Supply AC Voltage
230V ac

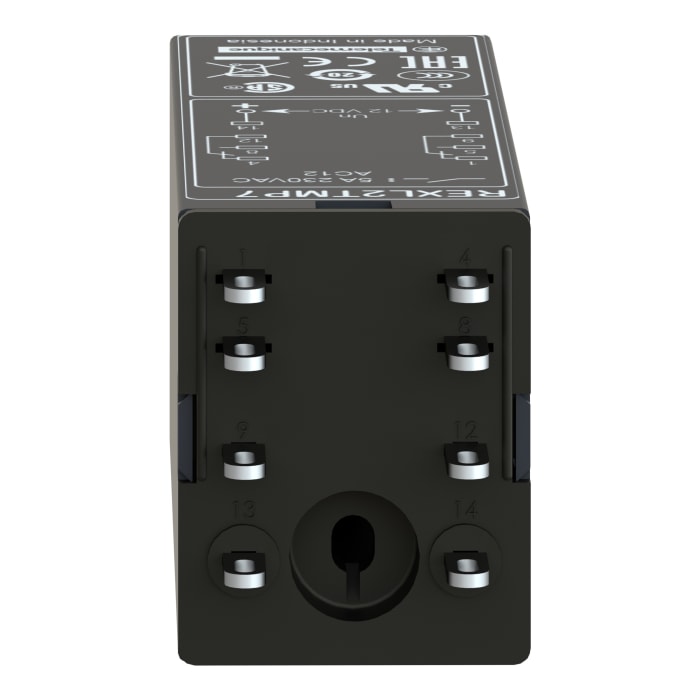

Terminal Type
8-Pin
Maximum Operating Temperature
60°C
Length
27mm
Height
30mm
Standards/Approvals
EN/IEC 60601-1, 89/336/EEC, 73/23/EEC, EN/IEC 61812-1, EN/IEC 60601-2, EN 50081-2, 93/68/EEC, EN 61000-6-2
Width
21mm
Better World Product
Yes
Series
Harmony Time
Country of Origin
Indonesia
Product details

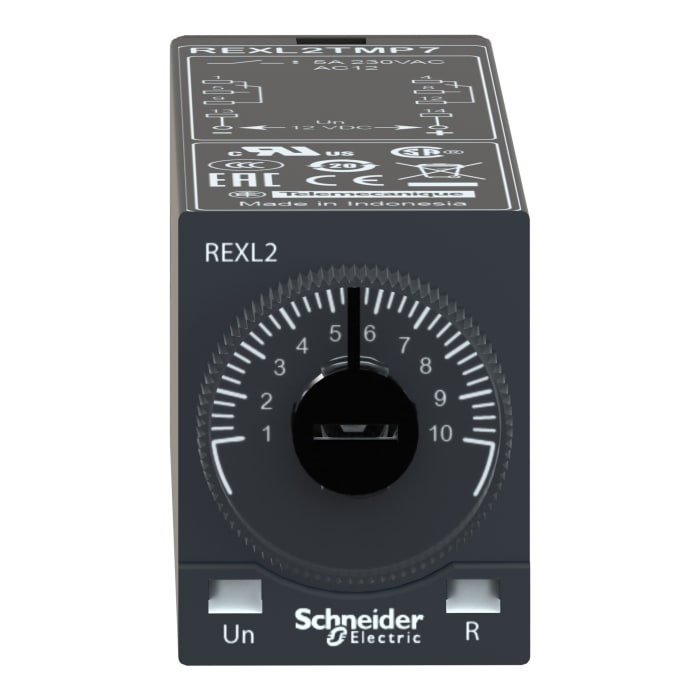

On Delay Timers- REXL2 Series
Schneider Electric REXL2 Series is a miniature designed time delay relay which features On delay functionality.
• On Delay function
• Compact miniature design
• 2 C/O
• Plug-in socket terminal
• 50 ms reset time
• Wide supply voltage range
• LED status indication for power and output
• IP50 protection
