Technical Documents
Specifications
Brand
STMicroelectronicsRated Average On-State Current Irms
2A
Product Type
TRIAC
Mount Type
Surface

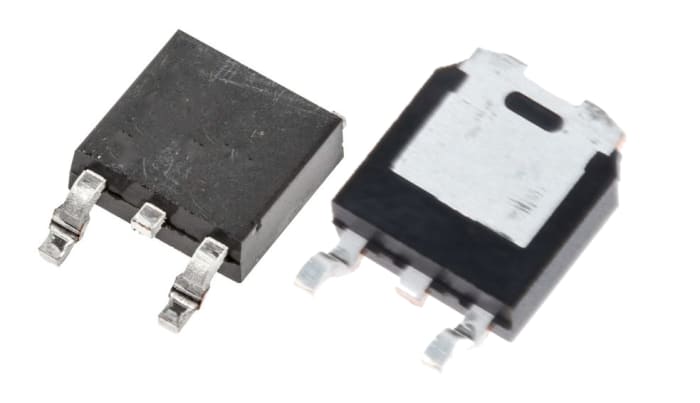

Package Type
TO-252
Maximum Gate Trigger Current Igt
10mA
Repetitive Peak Reverse Voltage VDRM
800V
Surge Current Rating
8.4A
Pin Count
3
Configuration
Single
Maximum Gate Trigger Voltage Vgt
1.1V
Maximum Holding Current Ih
10mA
Peak Gate Power Dissipation
10W
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
125°C
Length
6.73mm
Series
ACS
Height
2.4mm
Standards/Approvals
RoHS
Automotive Standard
No
Country of Origin
China
Product Details
The ACST2 series belongs to the ACS/ACST power switch family. This high performance device is suited to home appliances or industrial systems and drives loads up to 2 A. This ACST2 switch embeds a Triac structure with a high voltage clamping device to absorb the inductive turn-off energy and withstand line transients. The component needs a low gate current to be activated (IGT < 10 mA) and still shows a high electrical noise immunity.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
316.00 MOP
4.213 MOP Each (In a Tube of 75) (ex VAT)
75
316.00 MOP
4.213 MOP Each (In a Tube of 75) (ex VAT)
Stock information temporarily unavailable.
75
| quantity | Unit price | Per Tube |
|---|---|---|
| 75 - 300 | 4.213 MOP | 315.95 MOP |
| 375+ | 3.791 MOP | 284.32 MOP |
