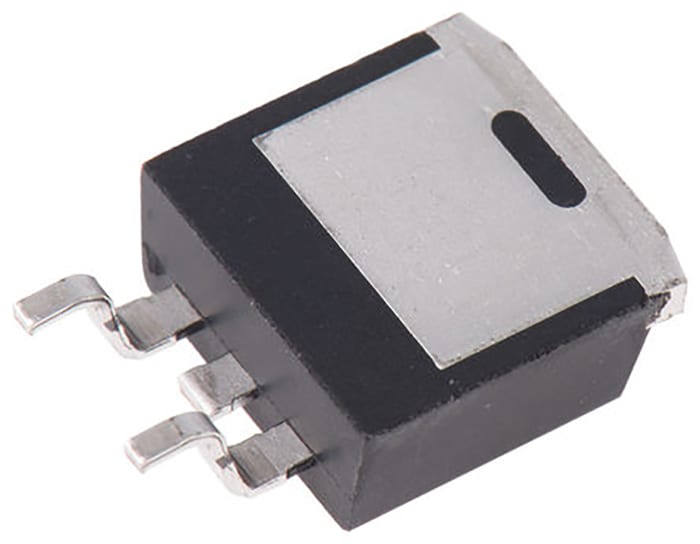

STMicroelectronics Surface, 3-Pin, TRIAC 800 V, Gate Trigger 1 V
Technical Document
Specifications
Brand
STMicroelectronicsRated Average On-State Current Irms
8A
Product Type
TRIAC
Mount Type
Surface
Package Type
TO-263
Maximum Gate Trigger Current Igt
30mA
Repetitive Peak Reverse Voltage VDRM
800V
Surge Current Rating
84A
Pin Count
3
Configuration
Single
Maximum Gate Trigger Voltage Vgt
1V
Maximum Holding Current Ih
30mA
Minimum Operating Temperature
-40°C
Peak Gate Power Dissipation
10W
Maximum Operating Temperature
125°C
Width
9.35 mm
Height
4.6mm
Length
10.4mm
Standards/Approvals
No
Repetitive Peak Off-State Current
1mA
Peak On-State Voltage
1.5V
Automotive Standard
No
Country of Origin
China
Product details
Over-Voltage Protected AC Switch TRIAC, ACST Series, STMicroelectronics
The ACST Series are static-switch semiconductors for Alternating Current (AC). They are simple-to-drive, sensitive-gate devices with highly inductive load switch-off capability. They embed a Triac structure with a high voltage clamping device to absorb the inductive turn off energy and withstand line transients.
TRIACs, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
80.50 MOP
16.096 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
5
80.50 MOP
16.096 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
5
| quantity | Unit price | Per Reel |
|---|---|---|
| 5 - 245 | 16.096 MOP | 80.48 MOP |
| 250 - 495 | 15.664 MOP | 78.32 MOP |
| 500+ | 15.437 MOP | 77.18 MOP |
