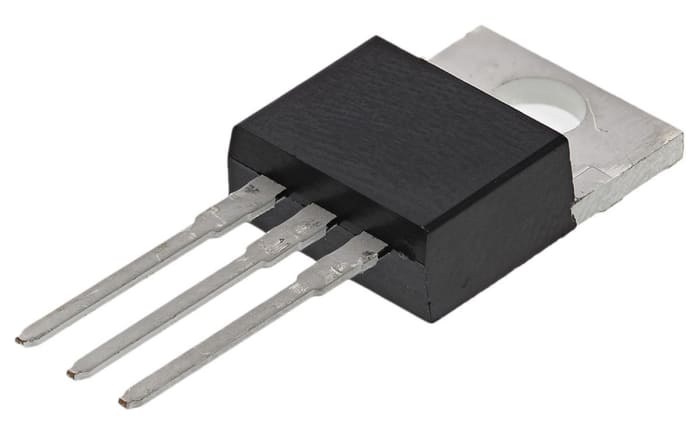

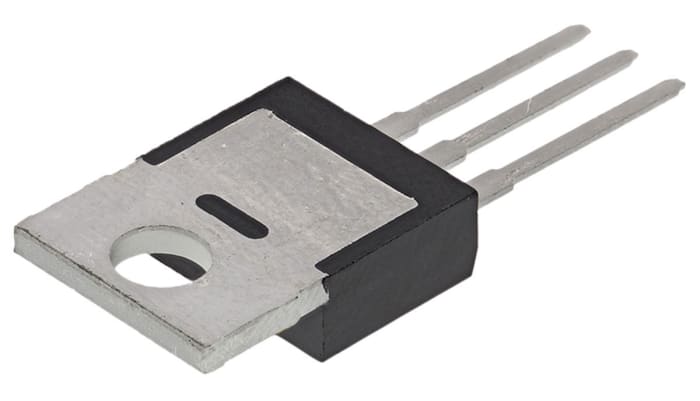

STMicroelectronics Through Hole, 3-Pin, TRIAC 800 V, Gate Trigger 1.3 V

RS Stock No.: 829-3806Brand: STMicroelectronicsManufacturers Part No.: BTA06-600BWRG
brand-logo
View all in TRIACs

Technical Document

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

6A

Product Type

TRIAC

Mount Type

Through Hole

Package Type

TO-220

Maximum Gate Trigger Current Igt

50mA

Repetitive Peak Reverse Voltage VDRM

800V

Surge Current Rating

63A

Pin Count

3

Configuration

Single

Maximum Gate Trigger Voltage Vgt

1.3V

Maximum Holding Current Ih

50mA

Minimum Operating Temperature

-40°C

Peak Gate Power Dissipation

1W

Maximum Operating Temperature

125°C

Width

4.6 mm

Height

15.9mm

Length

10.4mm

Standards/Approvals

No

Repetitive Peak Off-State Current

1mA

Peak On-State Voltage

1.55V

Automotive Standard

No

Product details

TRIAC, up to 6A, STMicroelectronics
