Technical Documents
Specifications
Brand
STMicroelectronicsRated Average On-State Current Irms
16A
Product Type

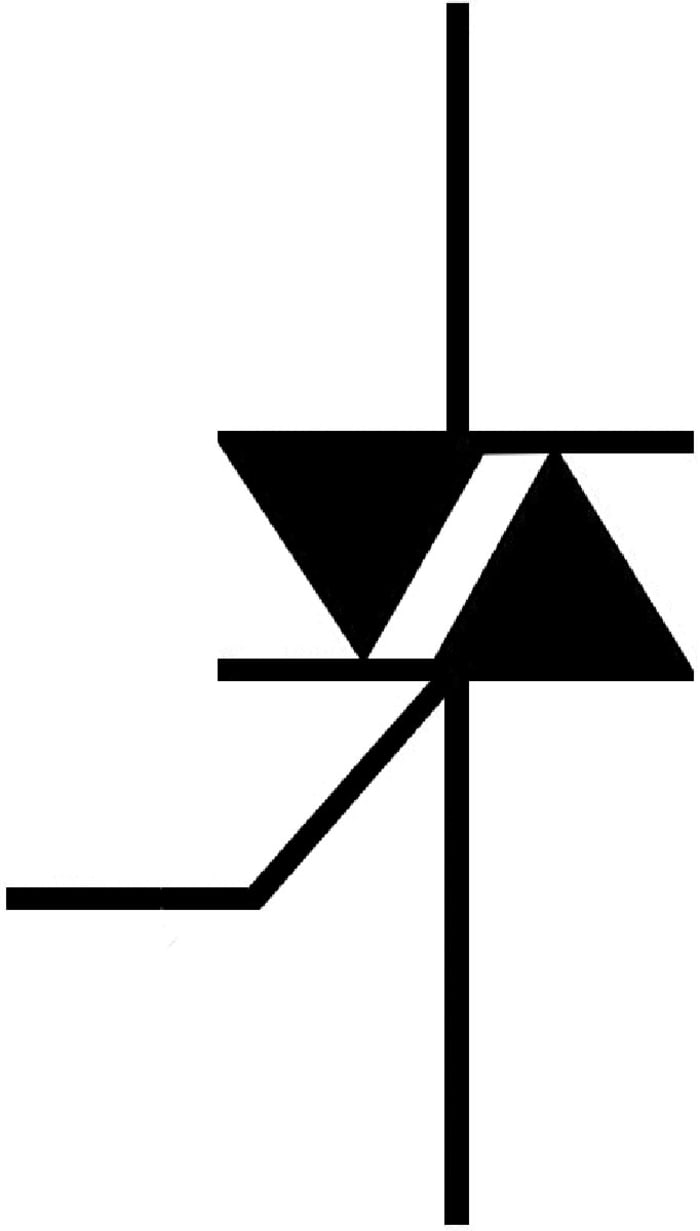

TRIAC
Mount Type
Through Hole
Package Type
TO-220AB
Maximum Gate Trigger Current Igt
35mA
Repetitive Peak Reverse Voltage VDRM
600V
Surge Current Rating
168A
Pin Count
3
Configuration
Single
Maximum Gate Trigger Voltage Vgt
1.3V
Maximum Holding Current Ih
35mA
Minimum Operating Temperature
-40°C
Peak Gate Power Dissipation
1W
Maximum Operating Temperature
125°C
Standards/Approvals
No
Height
9.3mm
Length
10.4mm
Automotive Standard
No
Repetitive Peak Off-State Current
0.005mA
Peak On-State Voltage
1.55V
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
53.00 MOP
10.594 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
53.00 MOP
10.594 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 10 | 10.594 MOP | 52.97 MOP |
| 15 - 20 | 10.346 MOP | 51.73 MOP |
| 25+ | 10.161 MOP | 50.80 MOP |
