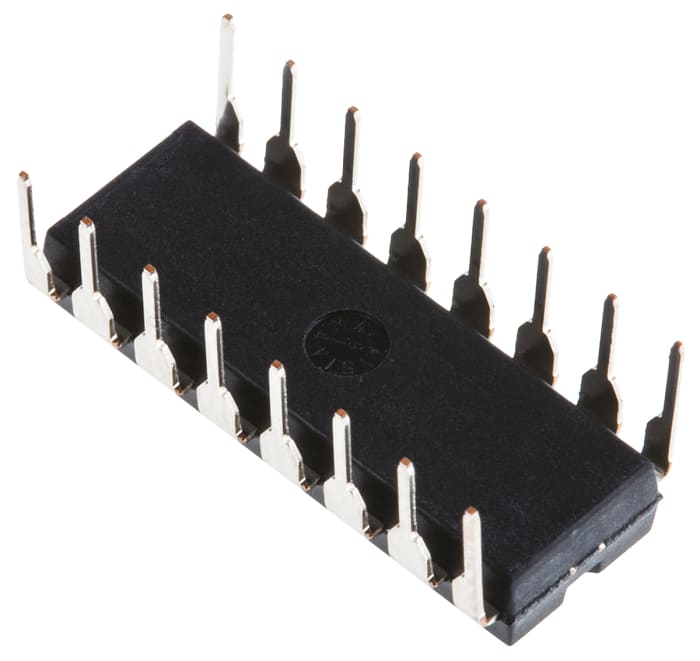

STMicroelectronics E-TEA3718DP, Stepper Motor Driver IC, 50 V 1.5 A 16-Pin, PDIP

RS Stock No.: 828-9933Brand: STMicroelectronicsManufacturers Part No.: E-TEA3718DP
brand-logo
View all in Motor Driver ICs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Motor Driver IC

Motor Type

Stepper

Configuration

Bipolar

Maximum IGBT Collector Current

1.5A

Maximum Collector Emitter Voltage Vceo

50V

Mount Type

Through Hole

Package Type

PDIP

Output Current

1.5A

Pin Count

16

Minimum Supply Voltage

10V

Maximum Supply Voltage

50V

Minimum Operating Temperature

0°C

Typical Switching Frequency

30kHz

Maximum Operating Temperature

70°C

Height

5.1mm

Length

20mm

Standards/Approvals

No

Width

7.1 mm

Series

TEA3718

Inverter Power Rating

3.6W

Supply Current

25mA

Automotive Standard

No

Product details

Stepper Motor Drivers, STMicroelectronics

Motor Controllers & Drivers, STMicroelectronics
