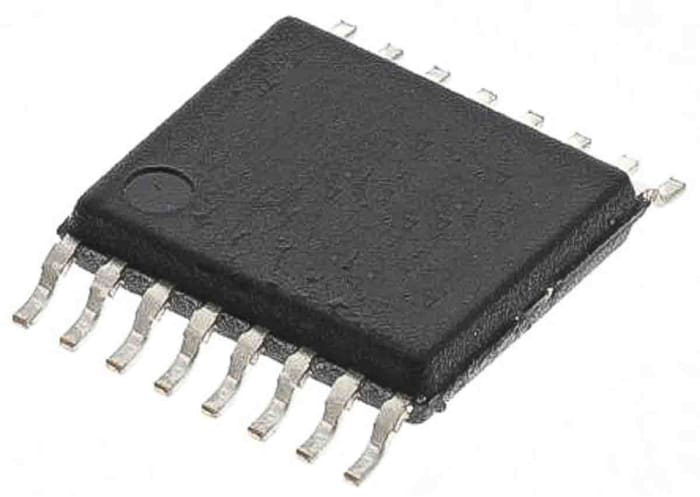

STMicroelectronics, Voltage Regulator 38V HTSSOP 16-Pin

Name: STMicroelectronics, Voltage Regulator 38V HTSSOP 16-Pin
Brand: STMicroelectronics
SKU: 1889191
Availability: LimitedAvailability

RS Stock No.: 188-9191Brand: STMicroelectronicsManufacturers Part No.: L6986TR

View all in Voltage Regulators

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Voltage Regulator

Package Type

HTSSOP

Mount Type

Surface

Polarity

Negative

Quiescent Current

100μA

Pin Count

Standards/Approvals

Width

4.5mm

Series

L6986

Length

5.1mm

Height

1.05mm

Minimum Input Voltage

Maximum Operating Temperature

150°C

Maximum Input Voltage

38V

Automotive Standard

Product Details

2 A DC output current
4 V to 38 V operating input voltage
Low consumption mode or low noise mode
30 μA IQ at light load (LCM VOUT = 3.3 V)
8 μA IQ-SHTDWN
Adjustable fSW (250 kHz - 2 MHz)
Output voltage adjustable from 0.85 V to VIN
Embedded output voltage supervisor
Synchronization
Adjustable soft-start time
Internal current limiting
Overvoltage protection
Output voltage sequencing
Peak current mode architecture
RDSON HS = 180 mΩ, RDSON LS = 150 mΩ
Thermal shutdown
Applications
Designed for 12 V and 24 V buses
Programmable logic controllers (PLCs)
Decentralized intelligent nodes
Sensors and low noise applications (LNM)

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Voltage Regulators
