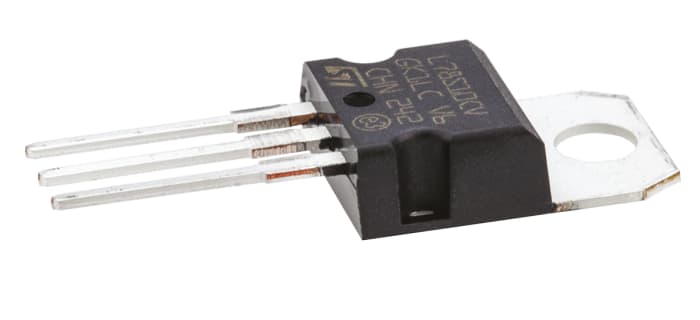

STMicroelectronics L78S10CV, 1-Channel Linear Voltage, Voltage Regulator, 2 A, 10 V, TO-220 3-Pin

Name: STMicroelectronics L78S10CV, 1-Channel Linear Voltage, Voltage Regulator, 2 A, 10 V, TO-220 3-Pin
Brand: STMicroelectronics
SKU: 6869757
Availability: LimitedAvailability

RS Stock No.: 686-9757Brand: STMicroelectronicsManufacturers Part No.: L78S10CV

View all in Voltage Regulators

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Voltage Regulator

Regulator Type

Linear Voltage

Line Regulation

200 mV

Load Regulation

240 mV

Mount Type

Through Hole

Polarity

Positive

Package Type

TO-220

Quiescent Current

8mA

Output Current

Pin Count

Output Type

Fixed

Switching Regulator

Yes

Height

9.15mm

Length

10.4mm

Standards/Approvals

Series

L78Sxx

Minimum Operating Temperature

0°C

Maximum Operating Temperature

150°C

Maximum Input Voltage

35V

Minimum Input Voltage

13V

Automotive Standard

Product Details

L78S 2A Linear Voltage Regulator, STMicroelectronics

STMicroelectronics L78S series positive voltage regulators are for use in fixed voltage regulation. There are no external parts required unless you want to adjust the outputs. The linear voltage regulators feature safe area protection, internal current limiting and thermal shut-down making them a robust device. STMicroelectronics regulators can offer local on-card regulation which can eliminate any distribution problems associated with single point regulation.

Three-terminal positive regulators in TO220 package
Output current up to 2 A/ Range of fixed output voltages
Thermal protection, short circuit protection, output transition SOA protection

Linear Voltage Regulators, STMicroelectronics

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more
