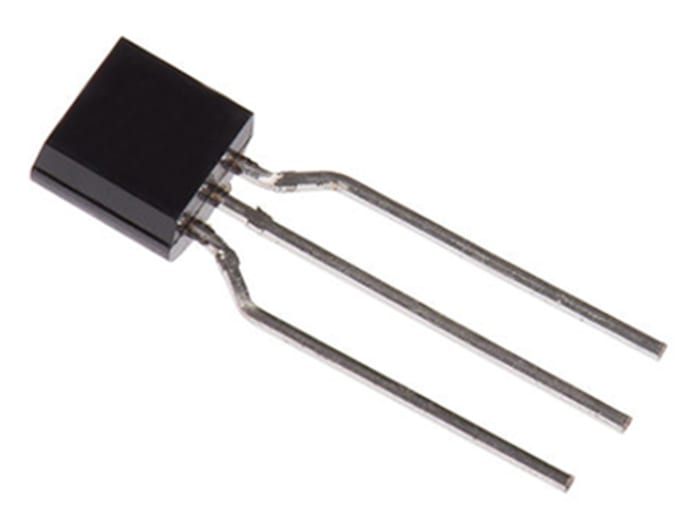

STMicroelectronics P0118MA 2AL3, Thyristor 600 V 8 A, 0.5 A 5 μA 1.95 V TO-92 3-Pin

Name: STMicroelectronics P0118MA 2AL3, Thyristor 600 V 8 A, 0.5 A 5 μA 1.95 V TO-92 3-Pin
Brand: STMicroelectronics
SKU: 8772801
Availability: LimitedAvailability

RS Stock No.: 877-2801Brand: STMicroelectronicsManufacturers Part No.: P0118MA 2AL3

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

0.5A

Product Type

Thyristor

Package Type

TO-92

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

5μA

Pin Count

Maximum Holding Current Ih

5mA

Maximum Gate Trigger Voltage Vgt

0.8V

Maximum Operating Temperature

125°C

Series

P011xx SCR

Standards/Approvals

Repetitive Peak Off-State Current

100μA

Peak On-State Voltage

1.95V

Automotive Standard

Product Details

Sensitive Gate Thyristors, STMicroelectronics

A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Thyristors

Stock information temporarily unavailable.

79.90 MOP

3.195 MOP Each (In a Pack of 25) (ex VAT)

STMicroelectronics P0118MA 2AL3, Thyristor 600 V 8 A, 0.5 A 5 μA 1.95 V TO-92 3-Pin

Select packaging type

Standard

79.90 MOP

3.195 MOP Each (In a Pack of 25) (ex VAT)

STMicroelectronics P0118MA 2AL3, Thyristor 600 V 8 A, 0.5 A 5 μA 1.95 V TO-92 3-Pin

Stock information temporarily unavailable.

Select packaging type

Standard

quantity	Unit price	Per Pack
25 - 475	3.195 MOP	79.86 MOP
500 - 975	3.112 MOP	77.80 MOP
1000+	3.067 MOP	76.67 MOP
