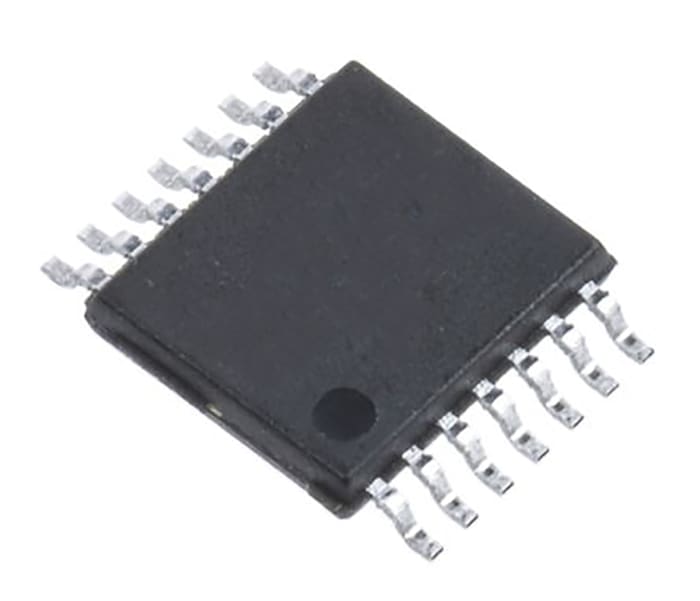

STMicroelectronics 2, 24 V Zener Diode, Single Surface 14-Pin TSSOP

Name: STMicroelectronics 2, 24 V Zener Diode, Single Surface 14-Pin TSSOP
Brand: STMicroelectronics
SKU: 1906775
Availability: LimitedAvailability

RS Stock No.: 190-6775Brand: STMicroelectronicsManufacturers Part No.: PCLT-2AT4-TR

View all in Zener Diodes

Technical Documents

Specifications

Brand

STMicroelectronics

Diode Configuration

Single

Nominal Zener Voltage Vz

24V

Product Type

Zener Diode

Number of Elements per Chip

Mount Type

Surface

Package Type

TSSOP

Zener Type

Bi-Directional

Pin Count

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

150°C

Length

6.4mm

Height

1.2mm

Standards/Approvals

Series

PCLT-2A

Automotive Standard

Product Details

3 channel topology: low side input with common ground
Wide range input DC voltage:
VI= - 0.3 to 30 V with RI= 0 Ω
VI= - 30 to 35 V with RI= 750 Ω
Current limiter:
3 to 7.5 mA programmable reference
ILIM= 6.1 mA to 8.8 mA with RREF= 10 kΩ
ILIM= 2.8 mA to 4 mA with RREF= 22 kΩ
Narrow limiter spread: < 17%
Temperature compensated operation
Output drive:
No output activation below 2 mA input
1.5 mA minimum output activating current in optocoupler mode
Programmable CMOS output mode option (VMOD> 2.9 V)
LED drive for sensor status: 4.4 mA typical with RREF= 10 kΩ
Input protection (RI= 750 Ω CIN= 22 nF)
IEC 61000-4-2 ESD, Level 4
In contact, ± 8 kV, in air, ± 15 kV
Criteria B: temporary disruption
IEC 61000-4-5 voltage surge, Level 3
± 500 V with 42 Ω series resistor in differential mode
Criteria B: temporary disruption
IEC 61000-4-4 transient burst immunity
± 4 kV peak voltage, 5 kHz repetitive rate
Criteria A: fully functional
IEC 61000-4-6 conducted RFI
10 VRMS
Criteria A: fully functional
Input protection against -30 V reverse polarity
Ambient temperature: -25 to 85 °C
Benefits
Enable input to meet type1, 2 and 3 characteristics of IEC 61131-2 standard
Compatible operation with 2 and 3 wires proximity sensor according EN60947-5-2 standard
Flexible configuration driving either opto- coupler, or CMOS b

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Zener Diodes

Stock information temporarily unavailable.

57,489.60 MOP

22.996 MOP Each (On a Reel of 2500) (ex VAT)

STMicroelectronics 2, 24 V Zener Diode, Single Surface 14-Pin TSSOP

57,489.60 MOP

22.996 MOP Each (On a Reel of 2500) (ex VAT)

STMicroelectronics 2, 24 V Zener Diode, Single Surface 14-Pin TSSOP

Stock information temporarily unavailable.

quantity	Unit price	Per Reel
2500 - 2500	22.996 MOP	57,489.64 MOP
5000 - 22500	22.306 MOP	55,764.79 MOP
25000+	21.637 MOP	54,091.87 MOP
