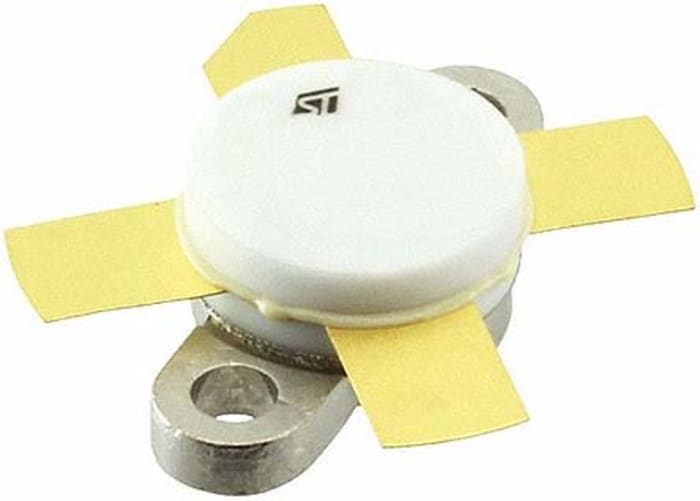

STMicroelectronics Single SD2931 Type N-Channel MOSFET, 20 A, 125 V Enhancement, 4-Pin M174

Name: STMicroelectronics Single SD2931 Type N-Channel MOSFET, 20 A, 125 V Enhancement, 4-Pin M174
Brand: STMicroelectronics
SKU: 9173356P
Availability: LimitedAvailability

RS Stock No.: 917-3356PBrand: STMicroelectronicsManufacturers Part No.: SD2931-10W

View all in MOSFETs

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

20A

Maximum Drain Source Voltage Vds

125V

Output Power

150W

Package Type

M174

Series

SD2931

Mount Type

Surface

Pin Count

Channel Mode

Enhancement

Minimum Operating Temperature

65°C

Maximum Operating Temperature

200°C

Transistor Configuration

Single

Length

26.67mm

Height

4.11mm

Standards/Approvals

Typical Power Gain

14dB

Automotive Standard

Country of Origin

Morocco

Product Details

RF MOSFET Transistors, STMicroelectronics

The Radio Frequency Transistors are LDMOS suitable for L-band satellite uplinks and DMOS power transistors in applications ranging from 1 MHz to 2 GHz.

MOSFET Transistors, STMicroelectronics
