Technical Documents
Specifications
Brand
STMicroelectronicsDiode Configuration
Single
Product Type
TVS Diode
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
14.4V
Mount Type
Surface
Package Type

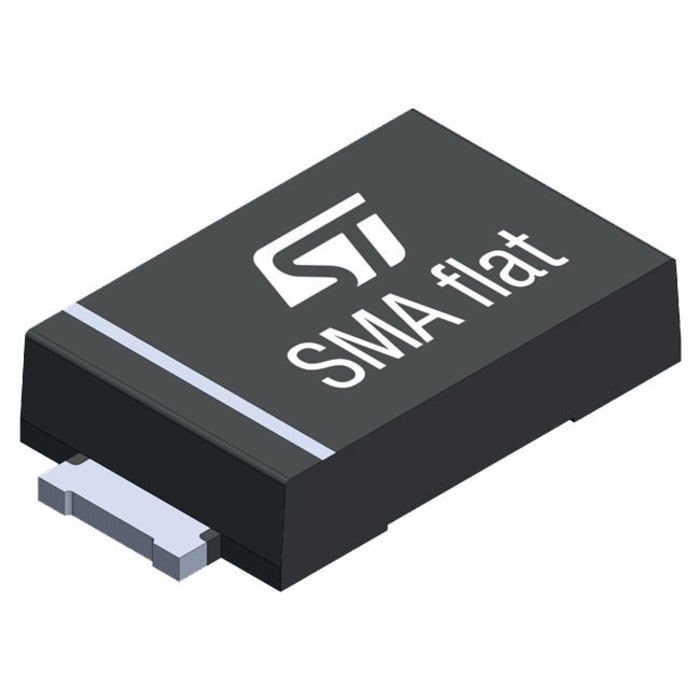

SMA Flat
Maximum Reverse Stand-off Voltage Vwm
13V
Pin Count
2
Peak Pulse Power Dissipation Pppm
600W
Clamping Voltage VC
27.2V
Minimum Operating Temperature
-55°C
Test Current It
1mA
Maximum Peak Pulse Current Ippm
147A
ESD Protection
Yes
Number of Elements per Chip
1
Maximum Operating Temperature
175°C
Height
1.05mm
Length
4.6mm
Standards/Approvals
No
Width
2.9mm
Series
SMA6FxxAY
Maximum Reverse Leakage Current
1μA
Automotive Standard
AEC-Q101
Country of Origin
Morocco
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
16,047.60 MOP
1.605 MOP Each (On a Reel of 10000) (ex VAT)
10000
16,047.60 MOP
1.605 MOP Each (On a Reel of 10000) (ex VAT)
Stock information temporarily unavailable.
10000
| quantity | Unit price | Per Reel |
|---|---|---|
| 10000 - 40000 | 1.605 MOP | 16,047.56 MOP |
| 50000+ | 1.557 MOP | 15,566.22 MOP |
