Technical Documents
Specifications
Brand
STMicroelectronicsDiode Configuration
Single
Product Type
TVS Diode
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
41.4V
Mount Type
Surface

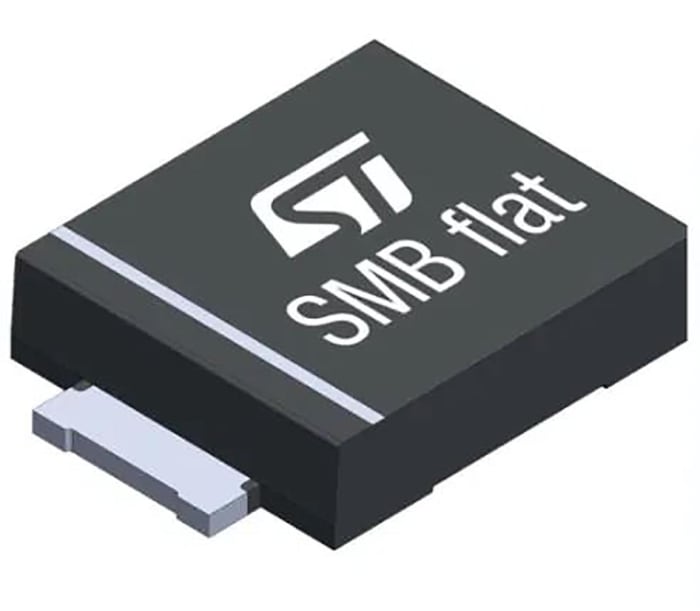

Package Type
SMB
Maximum Reverse Stand-off Voltage Vwm
64V
Pin Count
2
Peak Pulse Power Dissipation Pppm
1.5kW
Clamping Voltage VC
93.6V
Minimum Operating Temperature
-55°C
Test Current It
1mA
Maximum Peak Pulse Current Ippm
16A
Number of Elements per Chip
1
Maximum Operating Temperature
175°C
Height
1.1mm
Length
3.95mm
Standards/Approvals
No
Width
5.6mm
Series
SMB15FxxA
Maximum Reverse Leakage Current
1μA
Automotive Standard
No
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
10,133.80 MOP
2.027 MOP Each (On a Reel of 5000) (ex VAT)
5000
10,133.80 MOP
2.027 MOP Each (On a Reel of 5000) (ex VAT)
Stock information temporarily unavailable.
5000
| quantity | Unit price | Per Reel |
|---|---|---|
| 5000 - 20000 | 2.027 MOP | 10,133.83 MOP |
| 25000+ | 1.824 MOP | 9,120.54 MOP |
