Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
30A
Maximum Drain Source Voltage Vds
200V

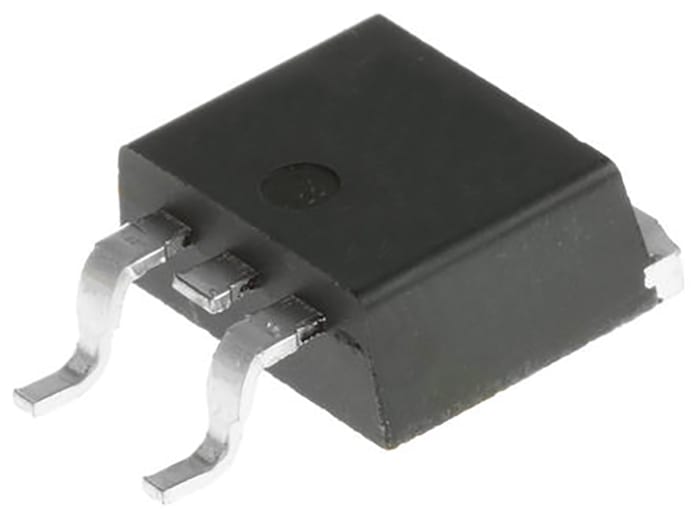

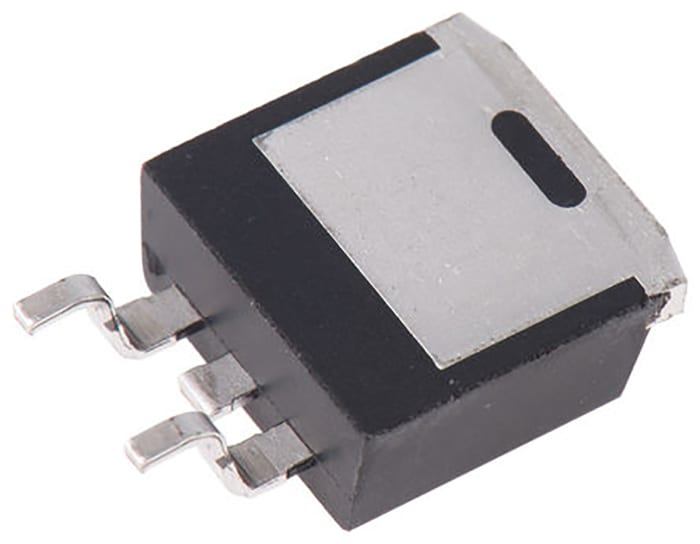

Package Type
TO-263
Series
STripFET
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
75mΩ
Channel Mode
Enhancement
Typical Gate Charge Qg @ Vgs
38nC
Maximum Power Dissipation Pd
125W
Minimum Operating Temperature
-55°C
Forward Voltage Vf
1.5V
Maximum Operating Temperature
150°C
Length
10.4mm
Height
4.6mm
Standards/Approvals
No
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
118.90 MOP
23.784 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
5
118.90 MOP
23.784 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
5
| quantity | Unit price | Per Reel |
|---|---|---|
| 5 - 245 | 23.784 MOP | 118.92 MOP |
| 250 - 495 | 23.186 MOP | 115.93 MOP |
| 500+ | 22.815 MOP | 114.08 MOP |
