Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
7A
Maximum Drain Source Voltage Vds
650V

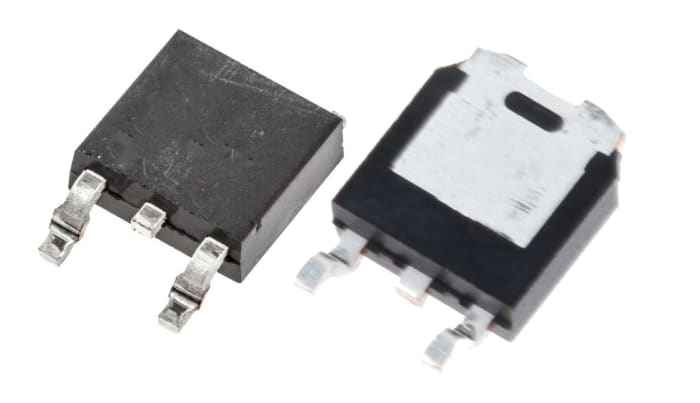

Package Type
TO-252
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
680mΩ
Channel Mode
Enhancement
Typical Gate Charge Qg @ Vgs
100nC
Maximum Power Dissipation Pd
85W
Minimum Operating Temperature
-55°C
Forward Voltage Vf
1.6V
Maximum Operating Temperature
150°C
Length
6.6mm
Height
2.17mm
Standards/Approvals
No
Automotive Standard
No
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
24,548.90 MOP
9.82 MOP Each (On a Reel of 2500) (ex VAT)
2500
24,548.90 MOP
9.82 MOP Each (On a Reel of 2500) (ex VAT)
Stock information temporarily unavailable.
2500
| quantity | Unit price | Per Reel |
|---|---|---|
| 2500 - 2500 | 9.82 MOP | 24,548.88 MOP |
| 5000 - 22500 | 9.525 MOP | 23,812.38 MOP |
| 25000+ | 9.239 MOP | 23,097.94 MOP |
