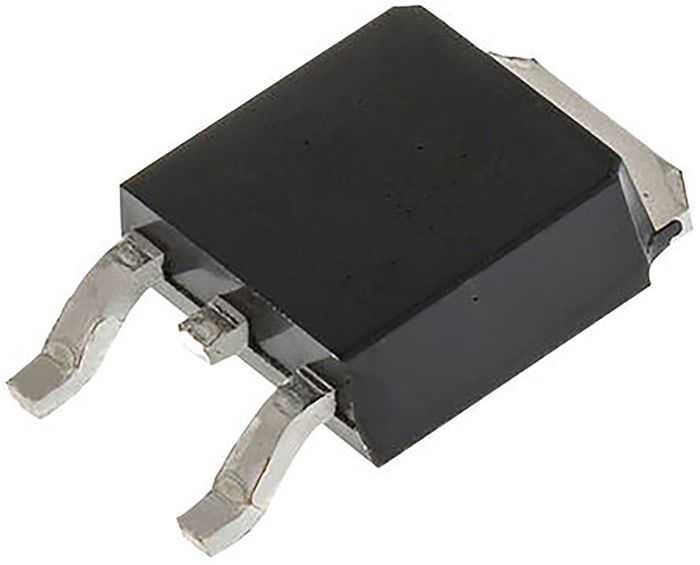

STMicroelectronics STripFET Type N-Channel MOSFET, 24 A, 60 V Enhancement, 3-Pin TO-252 STD16NF06LT4

RS Stock No.: 760-9550Brand: STMicroelectronicsManufacturers Part No.: STD16NF06LT4
brand-logo
View all in MOSFETs

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

24A

Maximum Drain Source Voltage Vds

60V

Package Type

TO-252

Series

STripFET

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

85mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

40W

Maximum Gate Source Voltage Vgs

18 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

7.5nC

Forward Voltage Vf

1.5V

Maximum Operating Temperature

175°C

Width

6.2 mm

Height

2.4mm

Length

6.6mm

Standards/Approvals

No

Automotive Standard

No

Product details

N-Channel STripFET™, STMicroelectronics

MOSFET Transistors, STMicroelectronics
