Technical Documents
Specifications
Brand

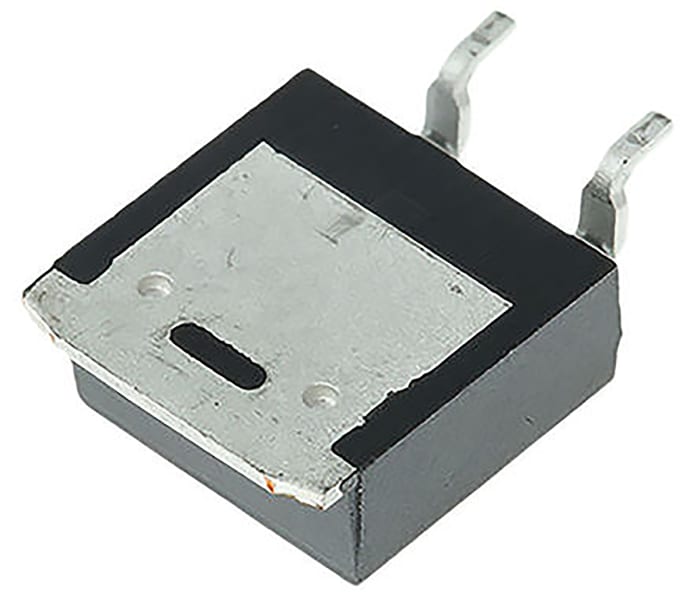

STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
15A
Maximum Drain Source Voltage Vds
710V
Series
MDmesh M5
Package Type
TO-252
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
220mΩ
Channel Mode
Enhancement
Forward Voltage Vf
1.5V
Maximum Power Dissipation Pd
110W
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
31nC
Maximum Operating Temperature
150°C
Length
6.6mm
Standards/Approvals
No
Height
2.4mm
Automotive Standard
No
Country of Origin
China
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
136.50 MOP
27.308 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
136.50 MOP
27.308 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 620 | 27.308 MOP | 136.54 MOP |
| 625 - 1245 | 26.628 MOP | 133.14 MOP |
| 1250+ | 26.195 MOP | 130.98 MOP |
